MILESIGHT - LoRaWAN Multi-Interface controller UC501-868M

UC501 is a multi-interface controller used for data acquisition from various sensors and equipments. It contains different I/O interfaces such as analog input, digital input, digital output, serial port and so on, which simplify the deployment and replacement of LoRaWAN® or cellular networks.

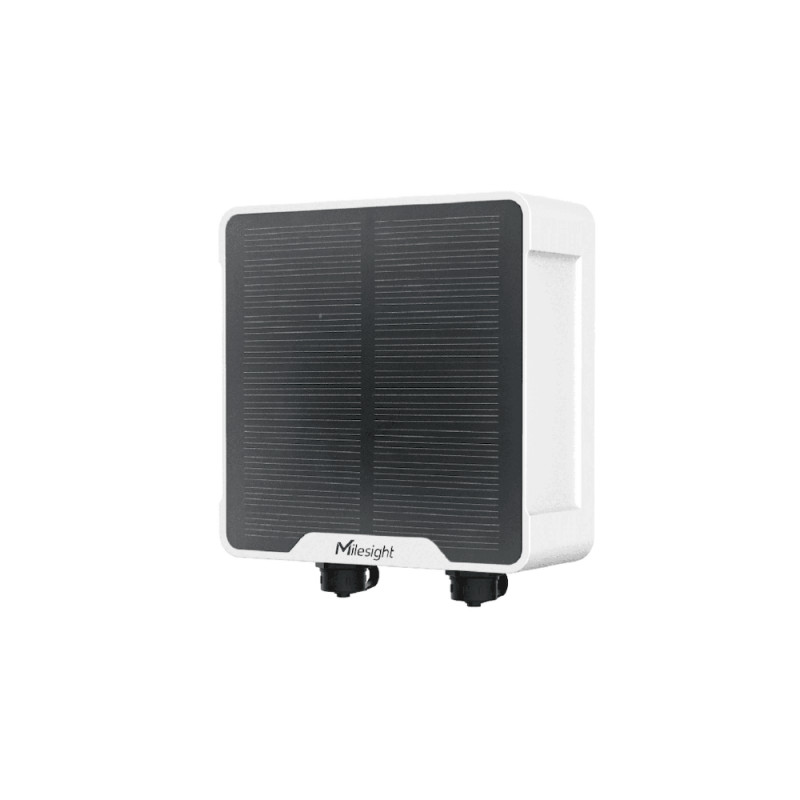

UC501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides flexible power like built-in solar panel or high-capacity battery and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.

Features of Milesight UC501 Multi-Interface Controller :

• Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485/SDI-12 interfaces
• Long transmission distance up to 15 km with line of sight
• Waterproof design including IP67 case and M12 connectors
• Solar powered and built-in battery optional
• Quick wireless configuration via NFC
• Compliant with standard LoRaWAN® gateways and network servers
• Quick and easy management with Milesight IoT Cloud solution
• Supports multicast for control in bulk

Technical specifications of Milesight UC501 Multi-Interface Controller :

• Wireless Transmission
• Frequency: EU868
• Tx Power: 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
• Sensitivity: -137dBm @300bps
• Work Mode: OTAA/ABP Class A, Class C
• Data Interfaces

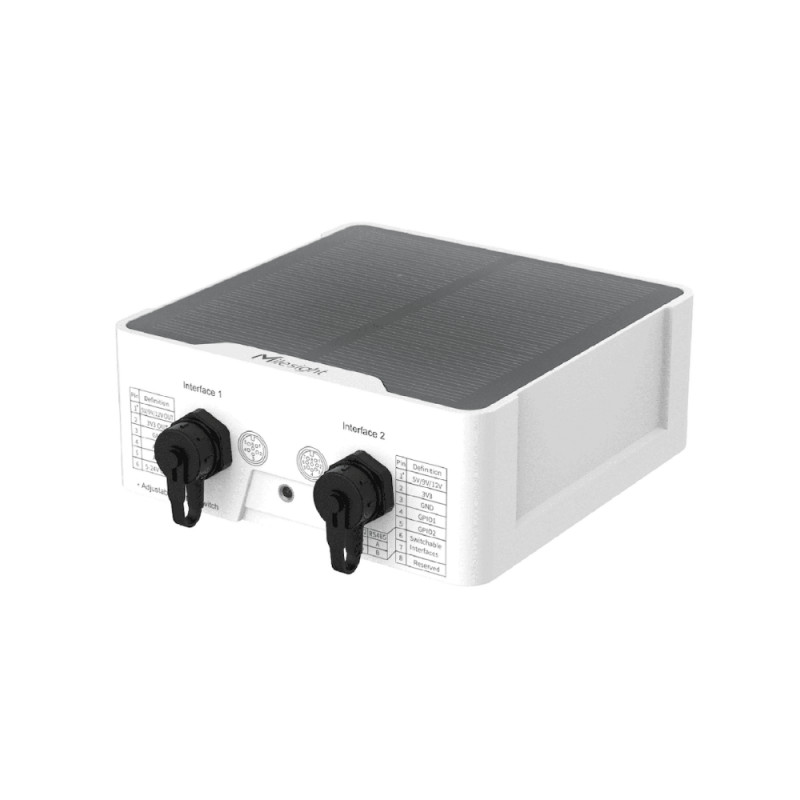

• Interface Type: M12 A-Coded Male
• IO Ports: 2 × GPIO
• Logical Level Low: 0~0.9 V, High: 2.5~3.3 V
• Maximum Current: 20 mA
• Work Mode: Digital Input, Digital Output, Pulse Counter (Software Switchable)
• Serial Port
• Ports: 1 × RS232 or RS485 (Software Switchable)
• Baud Rate: 1200~115200 bps
• Protocol Transparent (RS232/RS485), Modbus RTU (RS485)
• Analog Input
• Ports: 2 × Analog Input
• Resolution: 12 bit
• Input Range: 4~20 mA or 0~10 V (Switchable)
• SDI-12
• Ports: 1 × SDI-12
• Protocol SDI-12 V1.4, Transparent
• Power Output
• Ports: 2 × 3.3 V, 2 × 5/9/12 V(Switchable)
• Power Time Before Data Collection: Continuous (3.3V), 0~10 minutes (5/9/12V)
• Physical Characteristics
• Power Connector: 1 × M12 A-Coded Male Interface
• Power Supply:
• 1. 2 × 2550 mAh Chargeable Batteries
• 2. Solar powered (6V, 1.7W)
• 3. 5-24 VDC
• Operating Temperature: -20°C~60°C
• Ingress Protection: IP67
• Dimension: 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded)

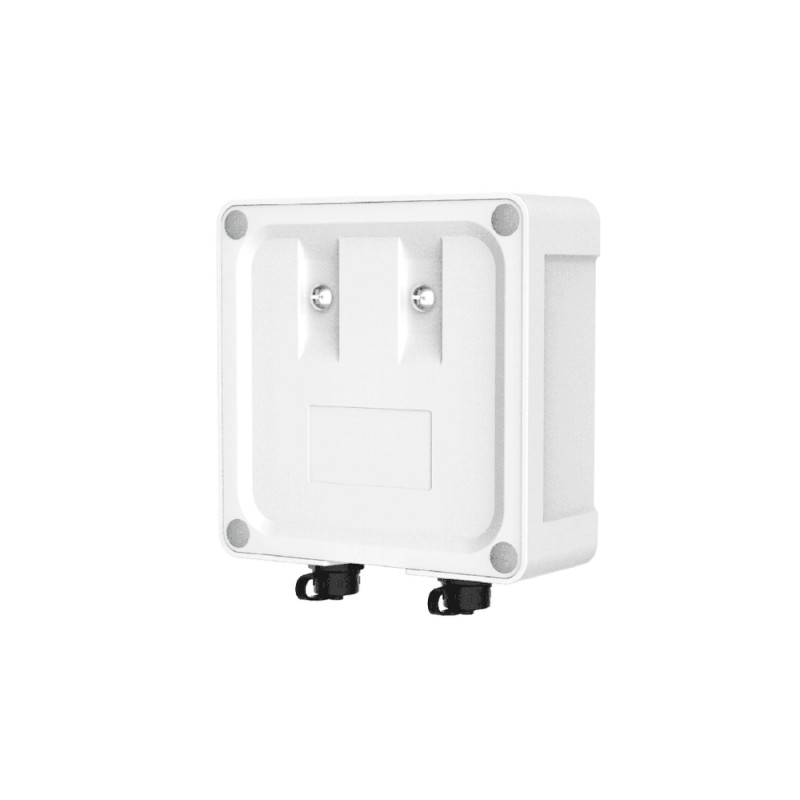

• Installation: Wall or Pole Mounting
