MILESIGHT - LoRaWAN Smart Scene Panel , 3 wires, 2 buttons

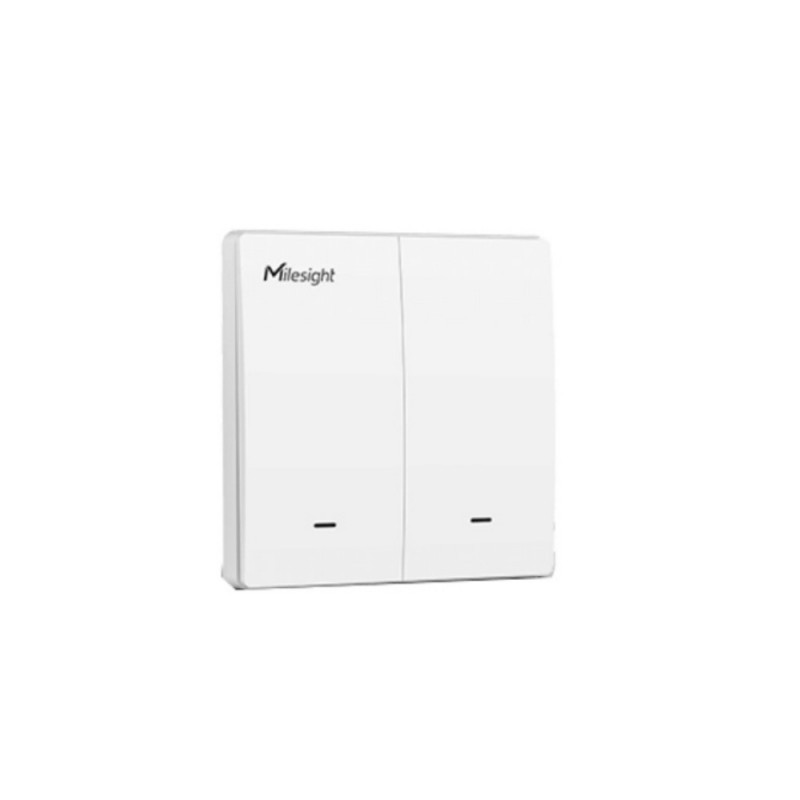

MILESIGHT - LoRaWAN wall switch, 3 wires, 2 buttons

The Milesight WS502 is an innovative 2-button wall switch designed to meet the needs of modern connected environments. Compatible with 3-wire electrical installations, this switch uses the LoRaWAN protocol to offer reliable and secure remote control of your electrical appliances, integrating perfectly with home automation systems.

Thanks to its advanced functions, the WS502 enables intelligent, personalized management of your environment. You can program precise schedules to activate or deactivate your electrical devices, improving energy efficiency and adapting to your lifestyle. What's more, button locking enhances security by preventing accidental activation, a major asset in both residential and professional environments.

The Milesight WS502 switch does more than just control: it also provides detailed data on the energy consumption of your connected devices, helping you to identify sources of waste and reduce your electricity bill. Compact and elegant, its design blends in with different interior styles, yet is robust for long-lasting use.

LoRaWAN WS502-868M-3WW11 wall switch technical specifications - MILESIGHT :

• Brand: MILESIGHT
• Reference: WS502 (3 wires 2 buttons)
• Type: Switch
• Technology: LoRaWAN
• Frequency: EU868
• Supported frequencies :
• CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4
• Transmit Power: 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
• Sensitivity :
• -137 dBm
• Communication Modes: OTAA/ABP Class C
• Number of Buttons: 2

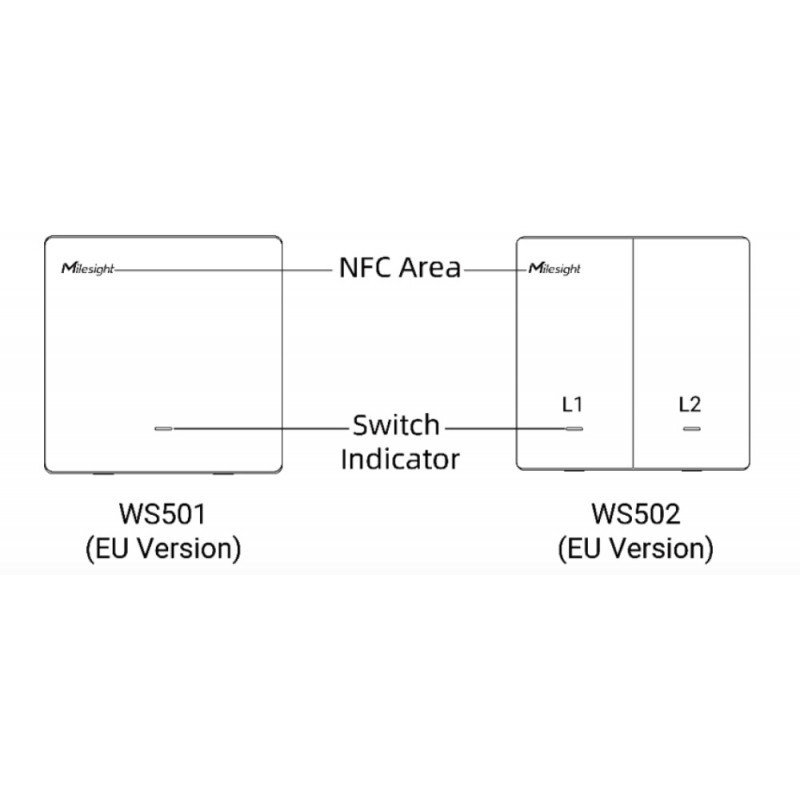

• Switch Indicator: Built-in LED
• Input Voltage: 100-250 VAC, 5060 Hz
• Maximum Current:
• Inductive: 5 A per button
• Resistive: 10 A per button
• Nominal Load: Max 1000 W per button
• Circuit Type:
• SPST
• Circuit configuration :
• 3-wire (with neutral)
• Measured Parameters: Voltage (VAC), Current (mA), Power Factor (%), Power (W), Energy Consumption (kWh)
• Configuration Method: NFC via mobile app
• Switch Control: Local press or remote control
• Advanced Features:
• Time programming, Switch lock, Overcurrent protection, Multicast, LoRa D2D Controller and Agent
• Protection rating: IP20
• Material: Flameproof polycarbonate
• Color: White
• Type 86: 86 × 86 × 40 mm
• Operating temperature:
• -20°C to +60°C
• Relative humidity: 0% to 95% (non-condensing)
