MILESIGHT - Smart Plug Lorawan 16A WS513-868M-FR

MILESIGHT - LoRaWan 16A smart wall socket

The MILESIGHT WS513 LoRaWAN Smart Plug is the ideal solution for controlling and monitoring the energy consumption of your electrical appliances in real time. Designed for both private and professional users, it enables you to optimize your electricity consumption, reduce waste, and better manage your appliances remotely thanks to LoRaWAN connectivity.

This connected socket supports loads of up to 16A and integrates easily into a LoRaWAN network, enabling you to monitor your energy data directly from your centralized management system or from a compatible application. It's ideal for home automation, commercial and industrial applications.

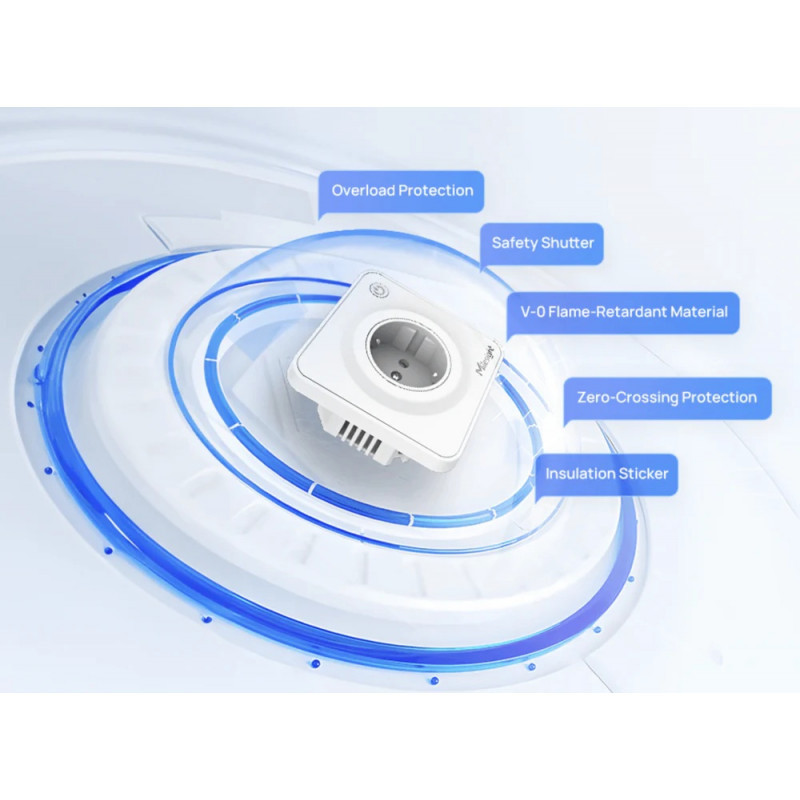

Thanks to its robust, compact design, the WS513 adapts to any indoor environment, and installation is quick and easy. What's more, it offers advanced safety features, including overload protection, ensuring safe, reliable operation.

Technical specifications of the WS513 LoRaWan - MILESIGHT plug :

• Technology: LoRaWan, Milesight D2D
• Frequency: IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4
• Transmit power: 16 dBm (868 MHz) / 22 dBm (915 MHz)
• Sensitivity: -137 dBm
• Operating mode: OTAA/ABP Class C
• Plug type:

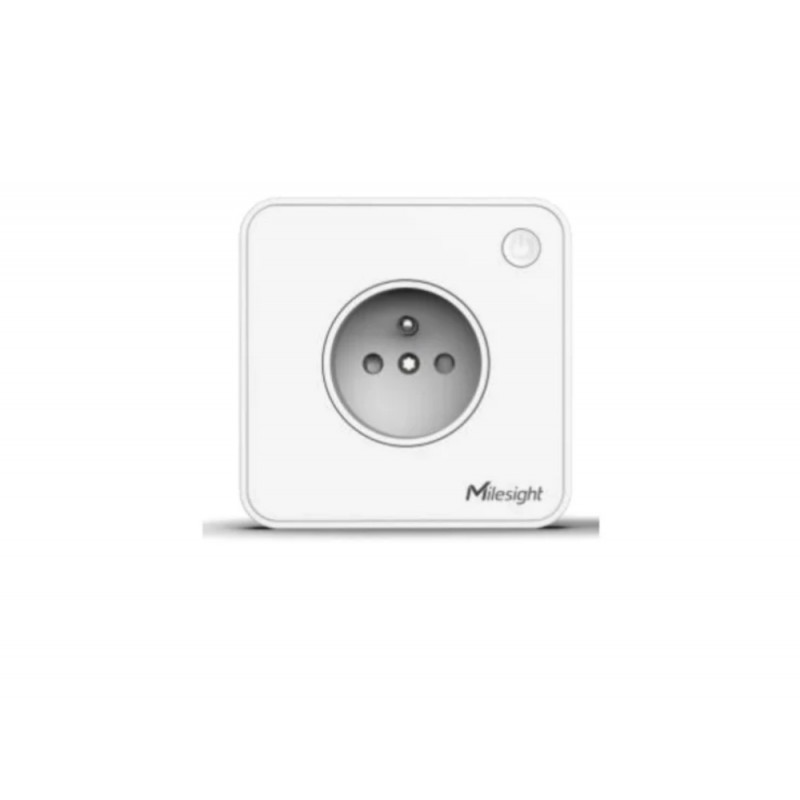

• EU (Type F) with safety shutter, FR (Type E) with safety shutter
• Input voltage: 100 to 250 VAC, 50 to 60 Hz
• Rated current: 16A (Max)
• Measurement: Voltage (VAC), Current (mA), Power factor (%), Power (W),
• Power consumption (kWh)
• Measurement accuracy:
• ±1%
• Configuration: NFC or via downlink command
• Power control:Local button or remote control
• Advanced features:Delayed switching, button lock, overcurrent protection/alarm, multicast, Milesight D2D agent
• LED indicator:
• 1
• Button: ON/OFF, Reset
• Protection rating: IP20
• Material and color:Flame-retardant polycarbonate, white
• Type F: 86.3 x 86.3 x 45.8 mm
• Type E: 86.3 x 86.3 x 43.3 mm
• Operating temperature:-20°C to +60°C
• Relative humidity: 0% to 95% (non-condensing)
