MILESIGHT - 4G LTE Industrial LoRaWAN® Gateway

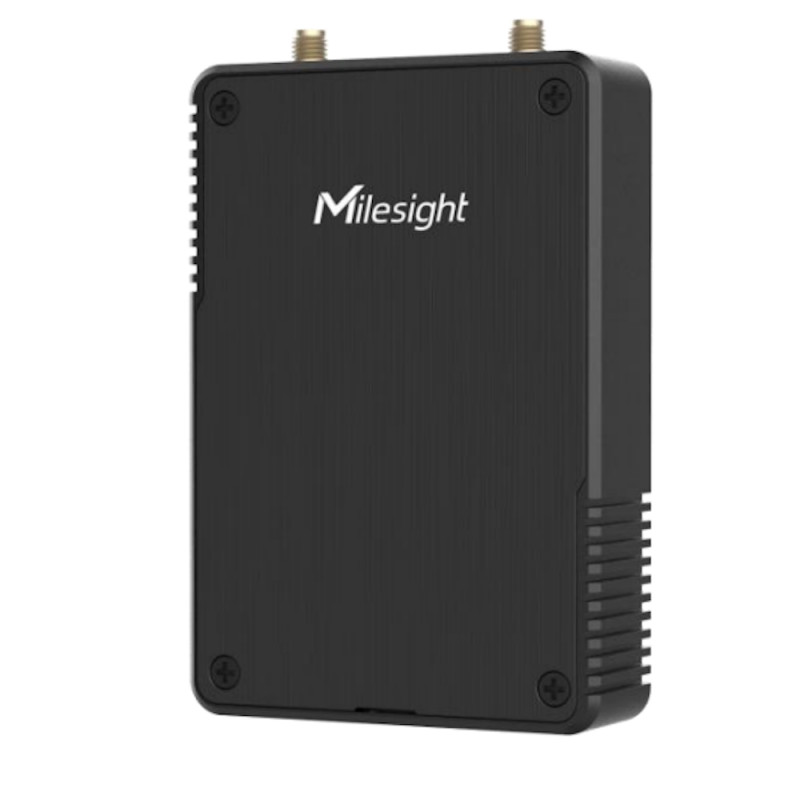

Milesight UG56-L04: Industrial POE LoRaWan Gateway

UG56 is a robust 8-channel indoor LoRaWAN gateway. Equipped with the SX1302 chip and a high-performance quad-core processor, the UG56 supports the connection of more than 2000 nodes.

It offers a line-of-sight range of up to 15 km and can cover about 2 km in urban environments, making it ideal for smart buildings, smart industries, and many other indoor applications.

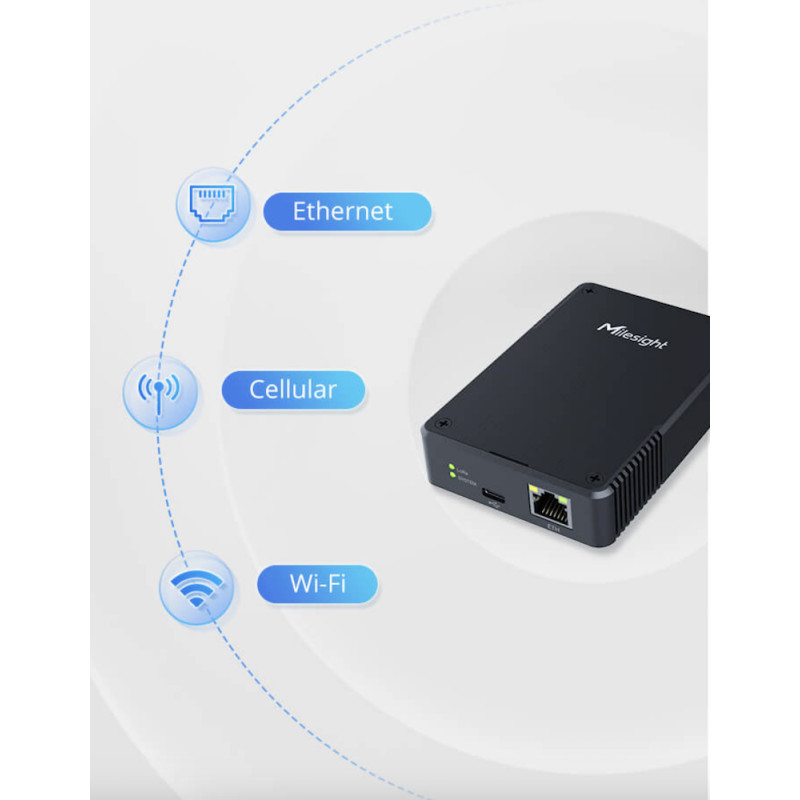

The UG56 supports multiple uplink options with Ethernet and Wi-Fi connections. It also integrates with major network servers (such as The Things Stack, ChirpStack, etc.), as well as an integrated network server and the Milesight development platform for simplified commissioning.

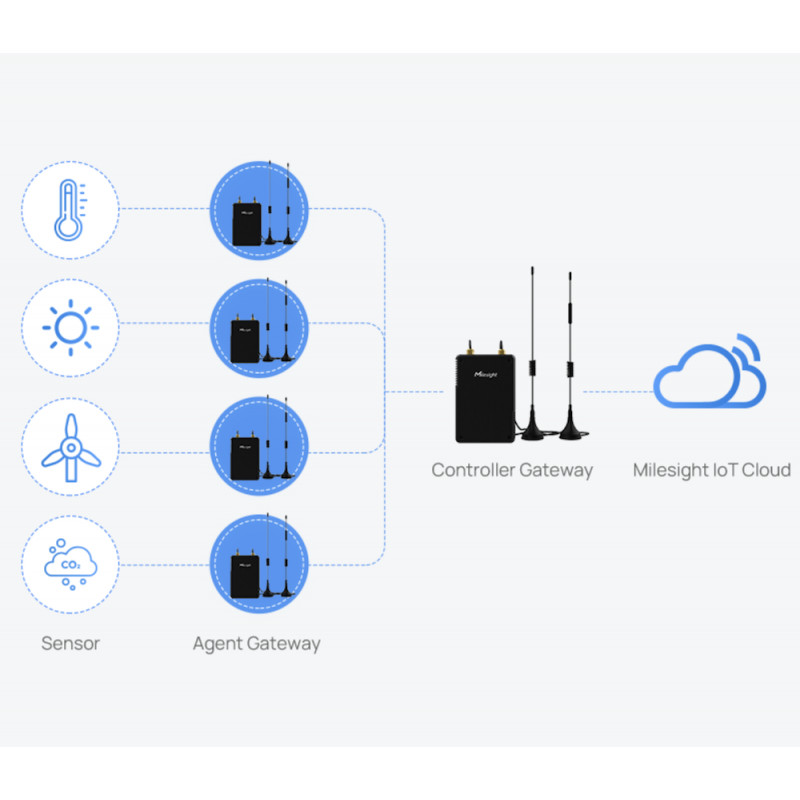

The gateway has a Gateway Fleet function that allows data transmission between remote gateways, facilitating network management.

Industrial POE LoRaWAN Gateway Function

• Connection of more than 2000 LoRaWAN nodes.
• Range of 15 km in line-of-sight, 2 km in urban environments.
• Support for Ethernet and Wi-Fi connections.
• Integration with network servers like The Things Stack and ChirpStack.
• Integrated network server for simplified management.
• Gateway Fleet function for data transmission between gateways.
• Milesight development platform for quick commissioning.
• Support for BACnet/IP and Modbus protocols for integration into building management systems.

Milesight UG56-L04 Gateway Technical Specifications

• CPU: Quad-core 1.3 GHz 64-bit ARM Cortex-A35
• Cellular Interface (Optional)
  • Antenna Connector: 1 × 50 Ω SMA Connector (Center Pin: SMA Female)
  • SIM Slot: 1 (Mini SIM-2FF)
• Memory: 512 MB DDR3 RAM
• Storage: 8 GB eMMC
• Expandable Storage: 1 Micro SD slot (internal)

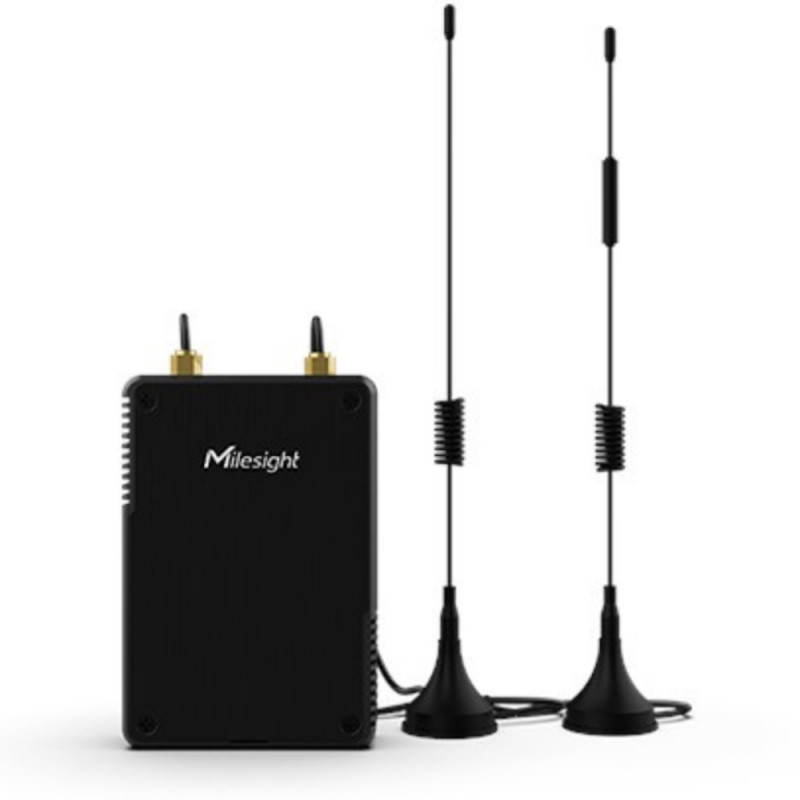

• LoRa Gateway Connector: 1 SMA 50 Ω connector (Center Pin: SMA Female)
• Number of Channels: 8 (half-duplex)
• Frequency Band: CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923-1/2/3/4
• Sensitivity: -140 dBm at 292bps
• Transmission Power: max 27 dBm
• LoRaWAN Protocols: V1.0 Class A/B/C and V1.0.2 Class A/B/C
• LBT Function: Supported
• WAN Port: 1 RJ45 (PoE PD supported)
• Network Wiring: 10/100 Base-T (IEEE 802.3)
• Data Rate: 10/100 Mbps (auto-detection)
• Interface: Auto MDI/MDIX
• Operating Mode: Full duplex or half duplex (auto-detection)
• Wi-Fi: Internal gateway
• Wi-Fi Standards: IEEE 802.11b/g/n, 2.4 GHz
• Wi-Fi Mode: AP or Client
• Wi-Fi Security: WPA/WPA2, WEP, TKIP, AES
• Wi-Fi Transmission Power:
  802.11b: 18 dBm ±2.0 dBm (11 Mbps)
  802.11g: 15 dBm ±2.0 dBm (6 Mbps and 54 Mbps)
  802.11n at 2.4 GHz: 14 dBm ±2.0 dBm
• Cellular Gateway Connector: 1 SMA 50 Ω (Center Pin: SMA Female)
• SIM Slot: 1 Mini SIM (2FF)
• Reset Button: 1 RST (internal)
• Console Port: 1 USB Type-C
• LED Indicators: 1 SYSTEM, 1 LoRa
• Built-in Monitoring: Watchdog, timer
• Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP
• VPN Tunnels: OpenVPN, IPsec, PPTP, L2TP, GRE, DMVPN, WireGuard
• Firewall: ACL, DMZ, port mapping, MAC binding, URL filter
• Management Methods: Web, CLI, SMS, on-demand call, DeviceHub, Milesight IoT Cloud, Milesight Development Platform
• Reliability: WAN Failover
• Integrated Applications: Python SDK, Node-RED
• Power Supply: PoE 802.3af or 5V, 2A via USB Type-C port
• Power Consumption: Typical 1.8 W, Maximum 6.9 W
• Ingress Protection: IP30
• Enclosure: Metal, black color
• Weight: 186 g
• Dimensions: 110 x 75 x 24 mm
• Installation: Desktop, wall-mounted, DIN rail
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Ethernet Isolation: 1.5 kV RMS
• Relative Humidity: 0 % to 95 % (non-condensing, at 25°C)
• Certifications: CE, FCC, ISED
• Environmental Compliance: RoHS
