Milesight UG56: POE industrial LoRaWan gateway

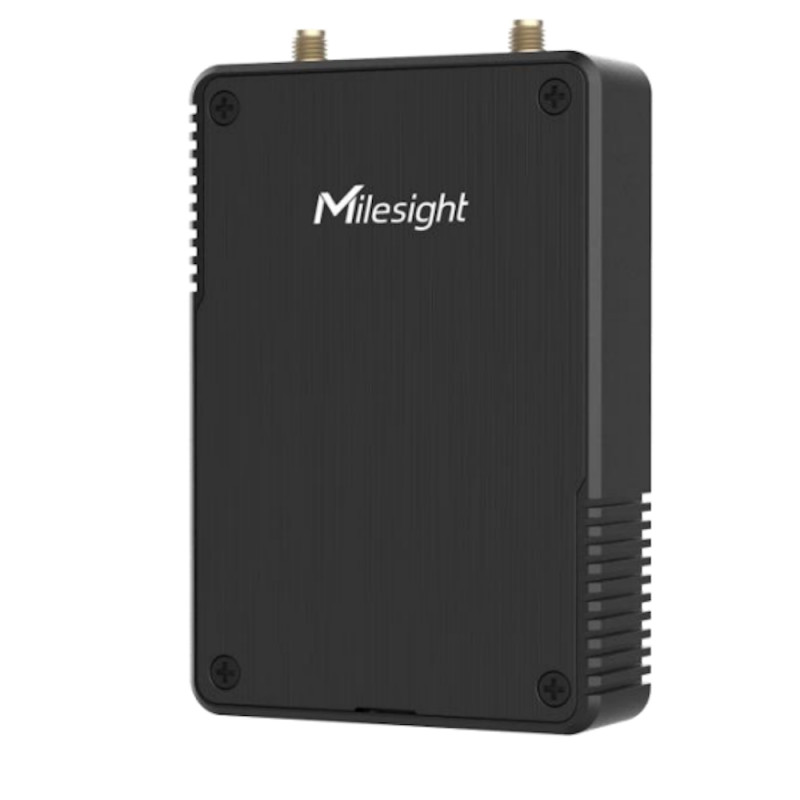

UG56 is a robust 8-channel indoor LoRaWAN gateway. Equipped with the SX1302 chip and a high-performance quad-core processor, the UG56 supports the connection of over 2000 nodes.

It offers a line-of-sight range of up to 15 km and can cover around 2 km in urban environments, making it ideal for intelligent buildings, smart industries and many other indoor applications.

The UG56 supports multiple uplink options with Ethernet, Wi-Fi and cellular connections. It also integrates leading network servers (such as The Things Stack, ChirpStack, etc.), as well as an integrated network server and the Milesight development platform for simplified commissioning.

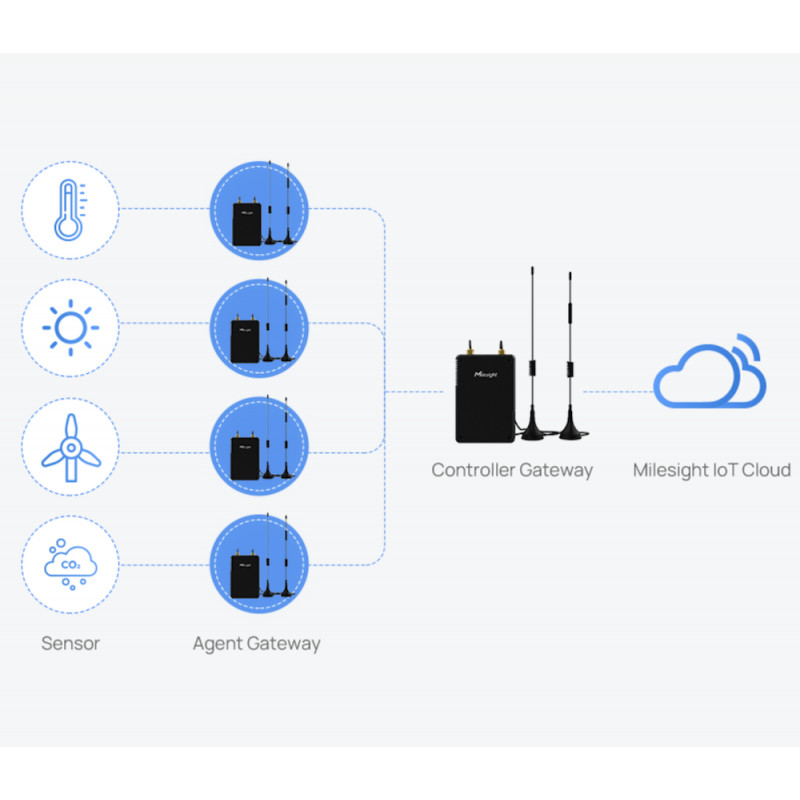

The Gateway Fleet function enables data transmission between remote gateways, facilitating network management.

LoRaWan POE industrial gateway functions

• Connection of over 2,000 LoRaWAN nodes.
• Range of 15 km in line-of-sight, 2 km in urban environments.

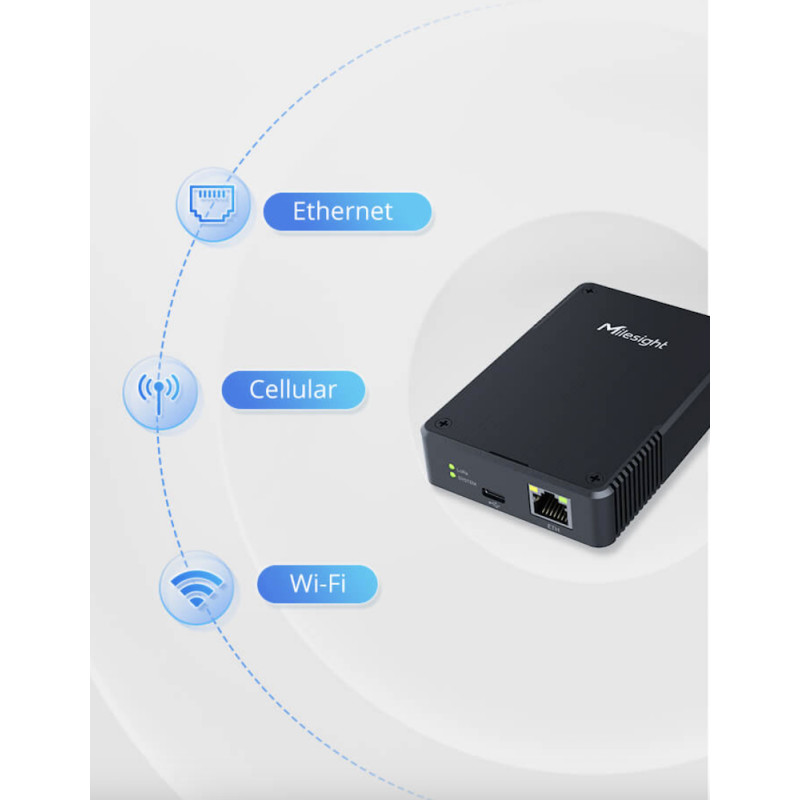

• Support for Ethernet, Wi-Fi and cellular (4G/3G) connections.
• Integration with network servers such as The Things Stack and ChirpStack.
• Integrated network server for simplified management.
• Gateway Fleet function for data transmission between gateways.
• Milesight development platform for rapid commissioningSupport for BACnet/IP and Modbus protocols for integration into building management systems.

Technical specifications of the Milesight UG56 gateway

• CPU: Quad-core 1.3 GHz 64-bit ARM Cortex-A35
• Memory: 512 MB DDR3 RAM
• Storage: 8 GB eMMC
• Expandable storage: 1 Micro SD slot (internal)

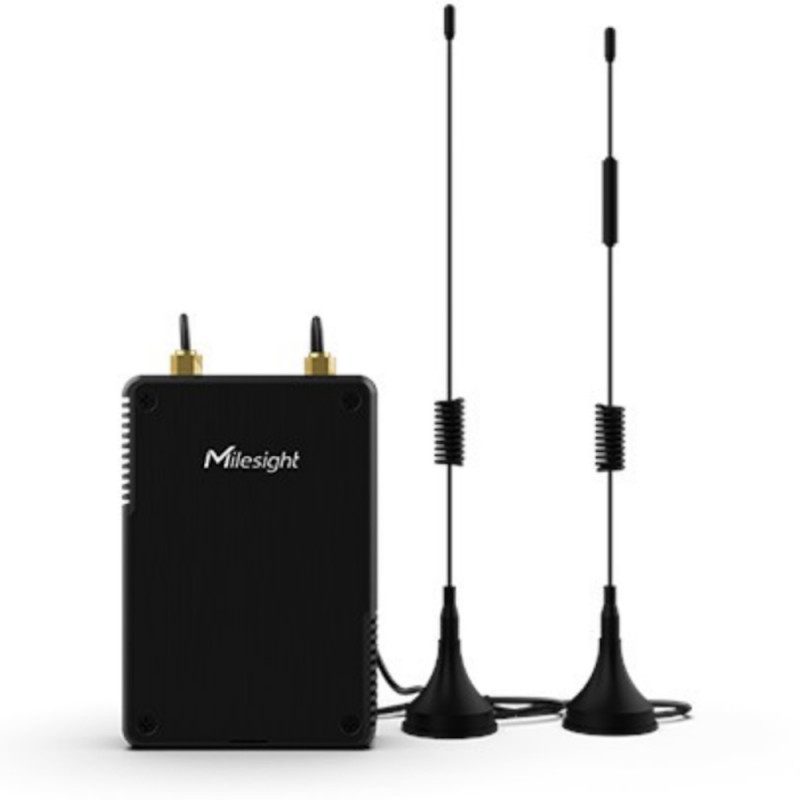

• LoRa gateway connector: 1 SMA 50 Ω connector (central PIN:
• SMA female)
• Number of channels: 8 (half-duplex)
• Frequency band: CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923-1/2/3/4
• Sensitivity: -140 dBm at 292bps
• Transmit power: max 27 dBm
• LoRaWAN protocols: V1.0 Class A/B/C and V1.0.2 Class A/B/C
• LBT function: supported
• WAN port: 1 RJ45 (PoE PD supported)
• Network cabling: 10/100 Base-T (IEEE 802.3)
• Data rate: 10/100 Mbps (auto-detect)
• Interface: Auto MDI/MDIX
• Operating mode: Full duplex or half duplex (auto-detect)
• Wi-Fi: internal gateway
• Wi-Fi standards: IEEE 802.11b/g/n, 2.4 GHz
• Wi-Fi mode: AP or client
• Wi-Fi security: WPA/WPA2, WEP, TKIP, AES
• Wi-Fi transmit power:
  802.11b: 18 dBm ±2.0 dBm (11 Mbps)
  802.11g: 15 dBm ±2.0 dBm (6 Mbps and 54 Mbps)
  802.11n at 2.4 GHz: 14 dBm ±2.0 dBm
• Cellular gateway connector: 1 SMA 50 Ω (central PIN: SMA female)
• SIM slot: 1 Mini SIM (2FF)
• Reset button: 1 RST (internal)
• Console port: 1 USB Type-C
• LED indicators:
• 1 SYSTEM, 1 LoRa
• Integrated monitoring: Watchdog, timer
• Network protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IPModbus RTU over TCP, Modbus TCP
• VPN tunnels:
• OpenVPN, IPsec, PPTP, L2TP, GRE, DMVPN, WireGuard Firewalls
• : ACL, DMZ, port mapping, MAC binding, URL filter
• Management methods:
• Web, CLI, SMS, call on demand, DeviceHub, Milesight IoT Cloud, Milesight Development Platform
• Reliability: WAN Failover
• Integrated applications: Python SDK, Node-RED
• Power supply: PoE 802.3af or 5V, 2A via USB Type-C port
• Power consumption: Typical 1.8 W, maximum 6.9 W
• Protection rating: IP30
• Housing: Metal, black
• Weight: 186 g
• Dimensions: 110 x 75 x 24 mm
• Installation: Desktop, wall-mounted, DIN rail
• Operating temperature :
• -20°C to +60°C
• Storage temperature: -40°C to +85°C
• Ethernet insulation: 1.5 kV RMS
• Relative humidity: 0% to 95% (non-condensing, at 25°C)
• Certifications: CE, FCC, ISED
• Environmental compliance: RoHS
