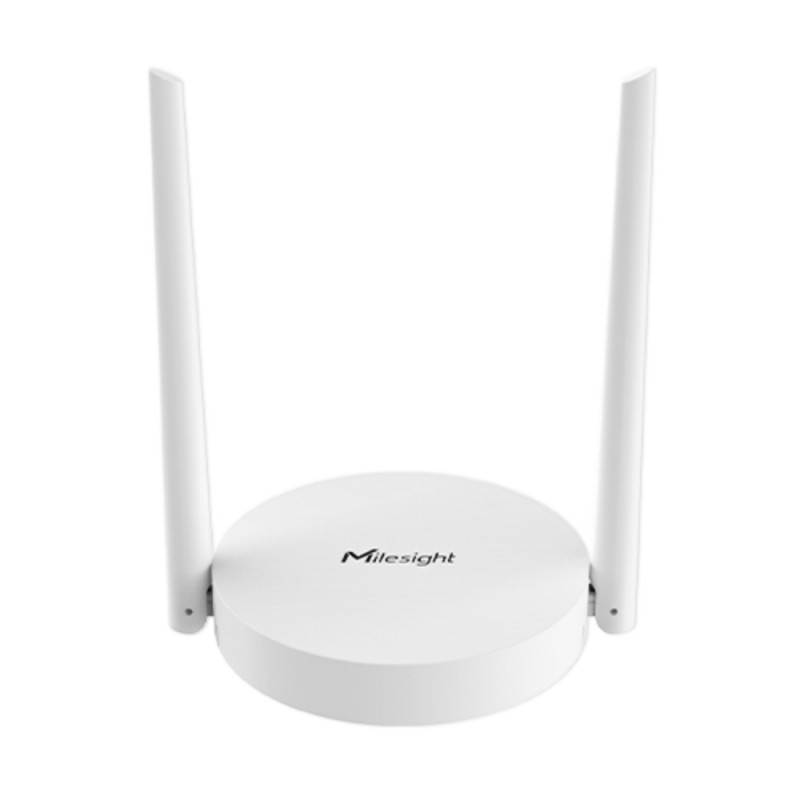

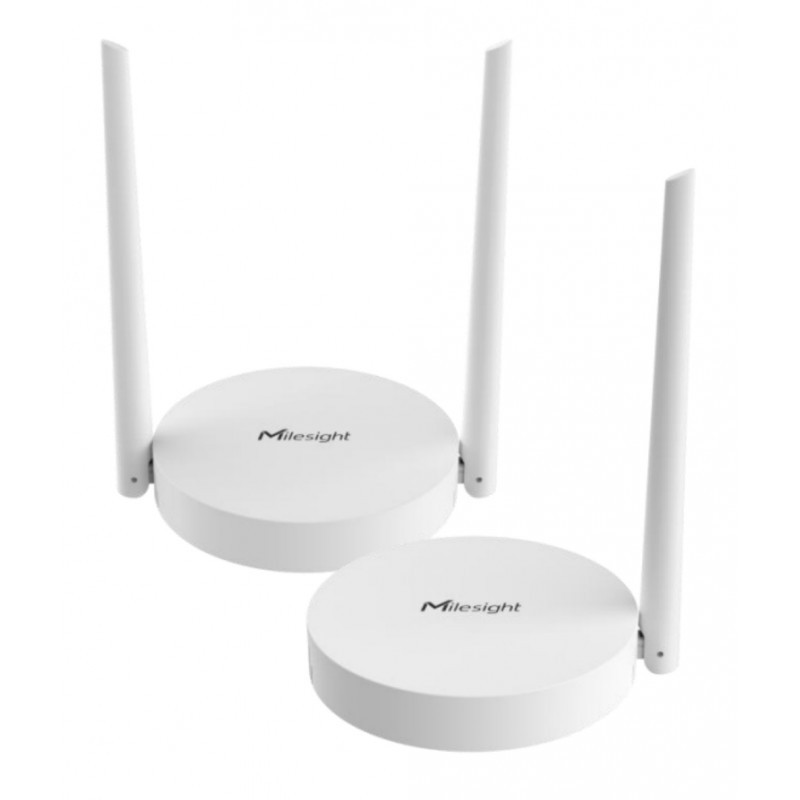

MILESIGHT - UG63 LoRaWAN indoor POE antenna

Optimize your IoT network with the MILESIGHT UG63, a compact, high-performance LoRaWan gateway ideal for indoor deployments.

Thanks to its lightweight design and support for Power over Ethernet (PoE), it facilitates installation while offering reliable connectivity for your LoRaWan devices.

Technical specifications of the UG63 LoraWan MILESIGHT antenna :

• Brand: Milesight
• Product reference:
• UG63-868M
• Product type:
• LoRaWan antenna
• Processor: Dual-core 240 MHz, 32-bit Xtensa® LX7
• Memory: 8 MB PSRAM / 16 MB Flash
• LoRaWan channels: 8 channels (Half-duplex)
• Frequencies supported :
• CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: Up to -140 dBm @292bps
• Output power: Up to 27 dBm
• LoRaWAN® protocols: V1.0 Class A/B/C and V1.0.2 Class A/B/C
• Connectivity: Ethernet: 1 RJ45 WAN port (10/100 Mbps) / Wi-Fi: IEEE 802.11b/g/n, 2.4 GHz (AP mode for configuration) / Cellular (optional): 4G LTE (CAT 1)/GSM with external antenna
• Power supply: 5V via Type-C port / 5~12V DC via 2-pin 3.5 mm terminal block/ PoE standard 802.3af (via optional PoE splitter)
• Power consumption: Typical 1.3 W, Max 3.1 W
• Dimensions: Ø 115 x 21 mm (excluding antenna)
• Material: PC plastic + ABS, white
• Installation: Desktop, wall or ceiling mounting
• Operating temperature :
• -20°C to +50°C
• Relative humidity: 0% to 95% (non-condensing)
• Certifications: CE, FCC, RoHS
