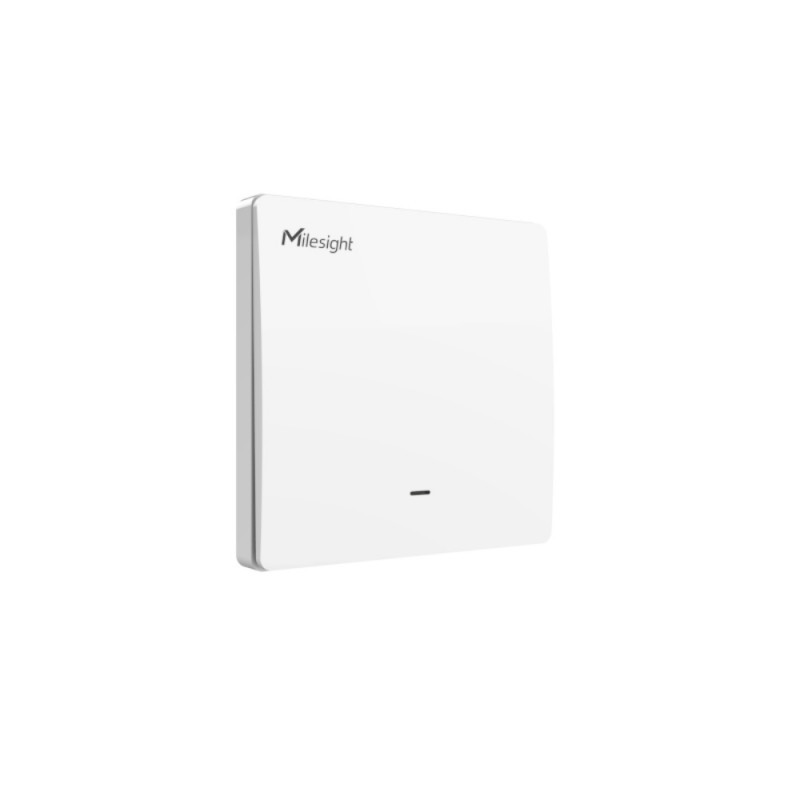

The WS501 from Milesight is an intelligent wall switch designed for local and remote control of lighting and electrical appliances. Thanks to LoRaWan technology, it enables efficient management of your devices, offering flexibility and convenience for a variety of applications.

Transform your environment with the Milesight switch, a smart wall switch featuring LoRaWan technology. It installs easily with a 2-wire configuration (without neutral), adapting to existing electrical infrastructures. With the ability to measure and monitor energy consumption in real time, it offers optimal control to reduce energy costs while improving comfort.

With its modern design and resistant materials, the WS501 provides an aesthetic, high-performance solution for your home automation needs. Compatible with leading IoT servers and equipped with advanced functions such as time scheduling, multi-device management and overload protection, it guarantees simplified, efficient energy management.

Technical specifications of the WS501 MILESIGHT switch :

• Brand: MILESIGHT
• Reference: WS501 (2 wires 1 button)
• Type: Leakage sensor
• Technology: LoRaWAN
• Frequency: EU868
• Supported frequencies :
• CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4
• Transmit Power: 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
• Sensitivity :
• -137 dBm
• Communication Modes: OTAA/ABP Class C
• Number of Buttons: 1

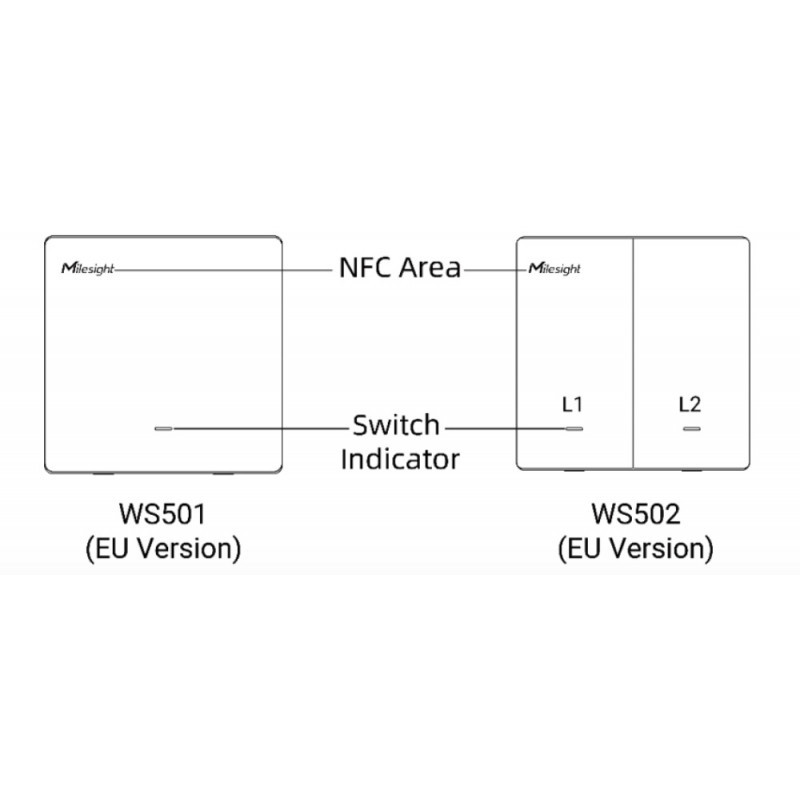

• Switch Indicator: Built-in LED
• Input Voltage: 100-250 VAC, 5060 Hz
• Maximum Current:
• Inductive: 5 A per button
• Resistive: 10 A per button
• Nominal Load: Max 1000 W per button
• Circuit Type:
• SPST

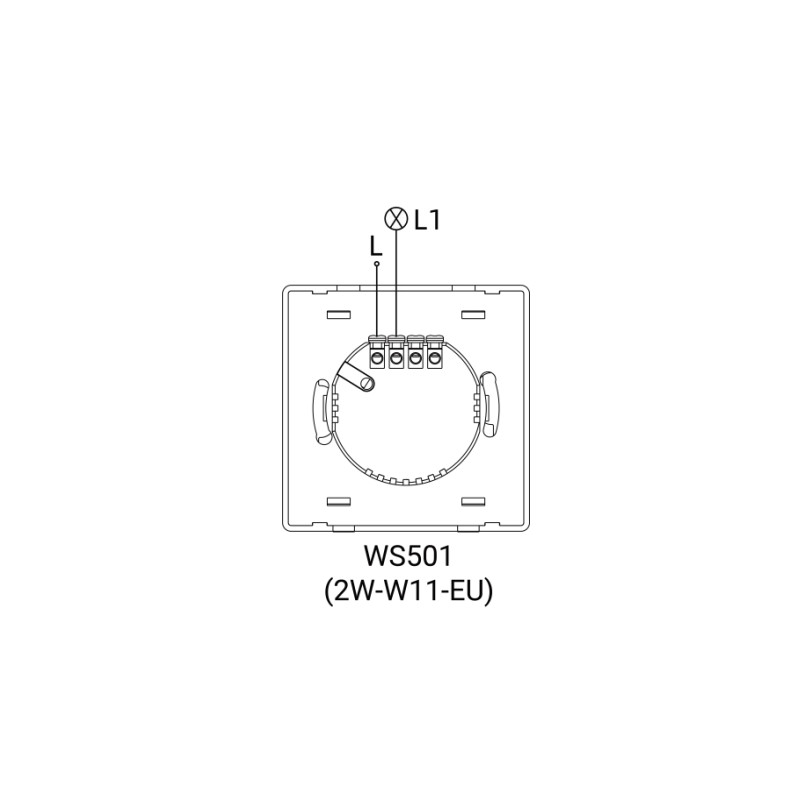

• Circuit Configuration: 2-wire (no neutral wire)
• Measured Parameters: Voltage (VAC), Current (mA), Power Factor (%), Power (W), Energy Consumption (kWh)
• Configuration Method: NFC via mobile app
• Switch Control: Local pressure or remote control
• Advanced Features:
• Time programming, Switch lock, Overcurrent protection, Multicast, LoRa D2D Controller and Agent
• Protection rating: IP20
• Material: Flameproof polycarbonate
• Color: White
• Type 86: 86 × 86 × 40 mm
• Operating temperature:
• -20°C to +60°C
• Relative humidity: 0% to 95% (non-condensing)
