MILESIGHT - LoRaWAN Smart Scene Panel , 3 wires, 1 button

MILESIGHT - 3-wire 1-button switch

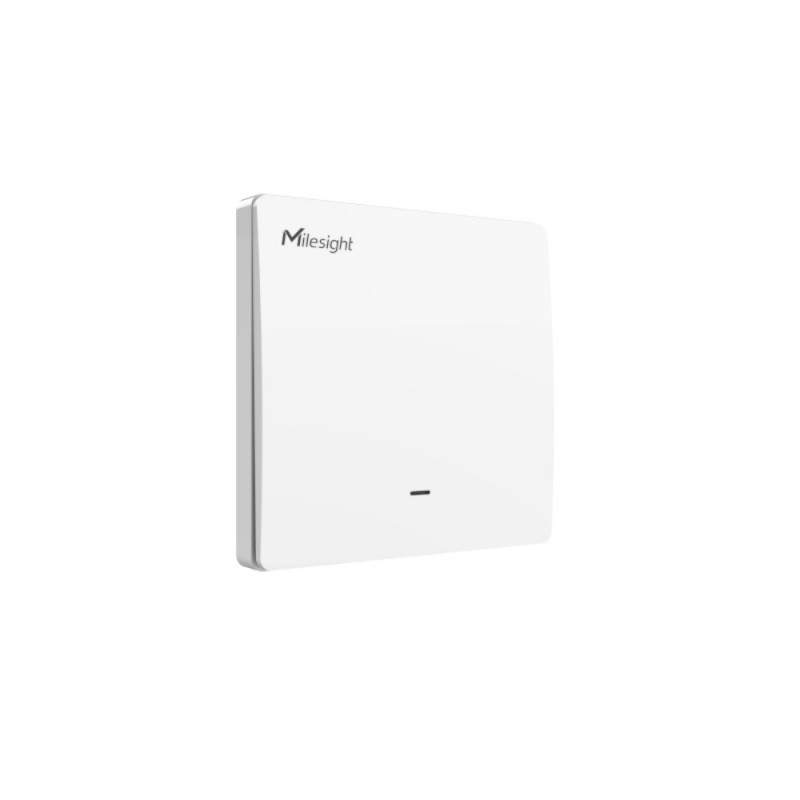

The Milesight WS501 is a modern, functional LoRaWAN wall switch designed for 3-wire installations.

Equipped with a single button, it enables precise, intelligent control of your electrical appliances via the LoRaWAN protocol. It integrates easily into an IoT home automation environment for remote management and optimized energy consumption. Perfect for automating your spaces while ensuring reliable, secure connectivity.

Technical specifications of the MILESIGHT LoRaWan switch :

• Brand: MILESIGHT
• Reference: WS501 (3 wires 1 button)
• Type: Switch
• Technology: LoRaWAN
• Frequency: EU868
• Supported frequencies :
• CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4
• Transmit Power: 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
• Sensitivity :
• -137 dBm
• Communication Modes: OTAA/ABP Class C
• Number of Buttons: 1

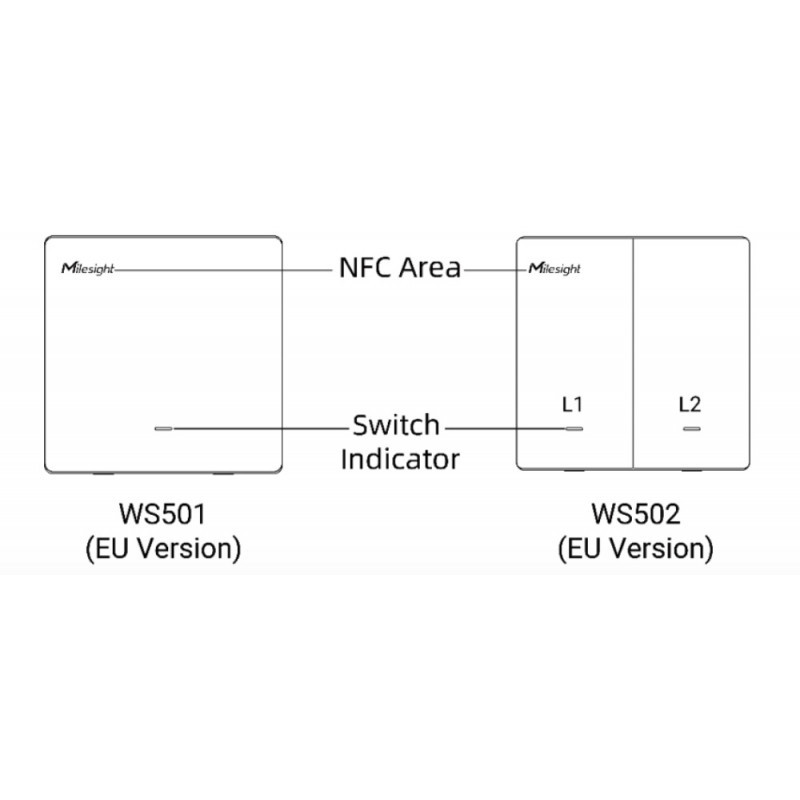

• Switch Indicator: Built-in LED
• Input Voltage: 100-250 VAC, 5060 Hz
• Maximum Current:
• Inductive: 5 A per button
• Resistive: 10 A per button
• Nominal Load: Max 1000 W per button
• Circuit Type:
• SPST
• Circuit configuration :

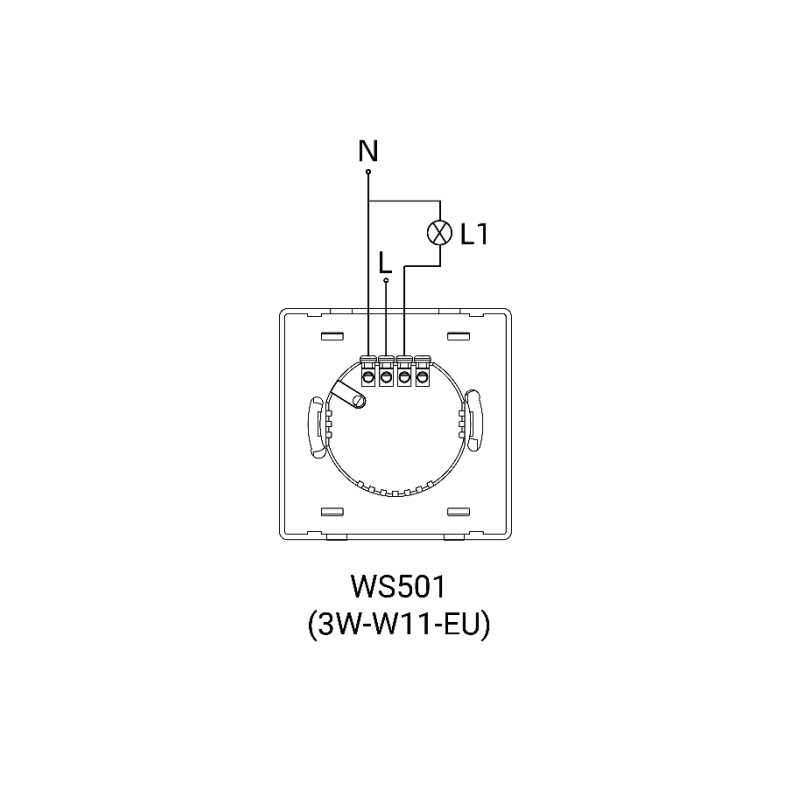

• 3-wire (with neutral)
• Measured Parameters: Voltage (VAC), Current (mA), Power Factor (%), Power (W), Energy Consumption (kWh)
• Configuration Method: NFC via mobile app
• Switch Control: Local press or remote control
• Advanced Features:
• Time programming, Switch lock, Overcurrent protection, Multicast, LoRa D2D Controller and Agent
• Protection rating: IP20
• Material: Flameproof polycarbonate
• Color: White
• Type 86: 86 × 86 × 40 mm
• Operating temperature:
• -20°C to +60°C
• Relative humidity: 0% to 95% (non-condensing)
