MILESIGHT - LoRaWAN Smart Scene Panel , 2 wires, 2 buttons

MILESIGHT - LoRaWan 2-button switch

The Milesight WS502 is a 2-button LoRaWAN wall switch designed for intelligent, remote control of electrical appliances. Compatible with home automation systems, it offers reliable connectivity and efficient management thanks to its integration with the LoRaWAN protocol. Ideal for optimizing energy management and automating your installations.

The Milesight 2-button LoRaWAN wall switch is compatible with neutral-free systems (2-wire version). Designed for intelligent control, it enables you to remotely manage your electrical equipment via the LoRaWAN protocol.

Compact and easy to install, it integrates perfectly into home automation environments, offering optimized energy management and reliable connectivity.

Technical specifications of the WS502 MILESIGHT switch :

• Brand: MILESIGHT
• Reference: WS502 (2 wires 2 button)
• Type: Switch
• Technology: LoRaWAN
• Frequency: EU868
• Supported frequencies :
• CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4
• Transmit Power: 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
• Sensitivity :
• -137 dBm
• Communication Modes: OTAA/ABP Class C
• Number of Buttons: 2

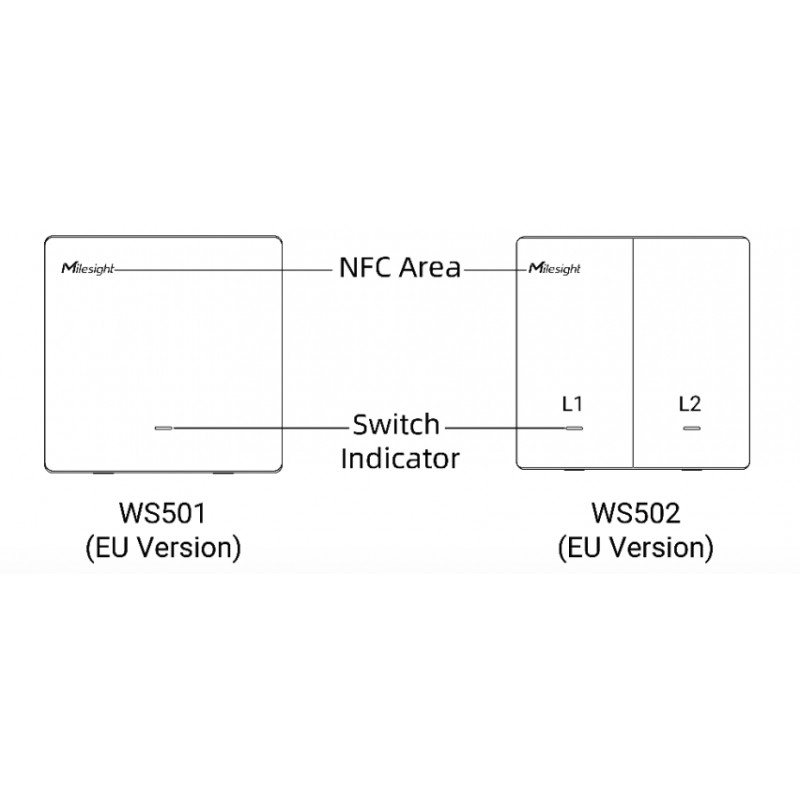

• Switch Indicator: Built-in LED
• Input Voltage: 100-250 VAC, 5060 Hz
• Maximum Current:
• Inductive: 5 A per button
• Resistive: 10 A per button
• Nominal Load: Max 1000 W per button
• Circuit Type:
• SPST

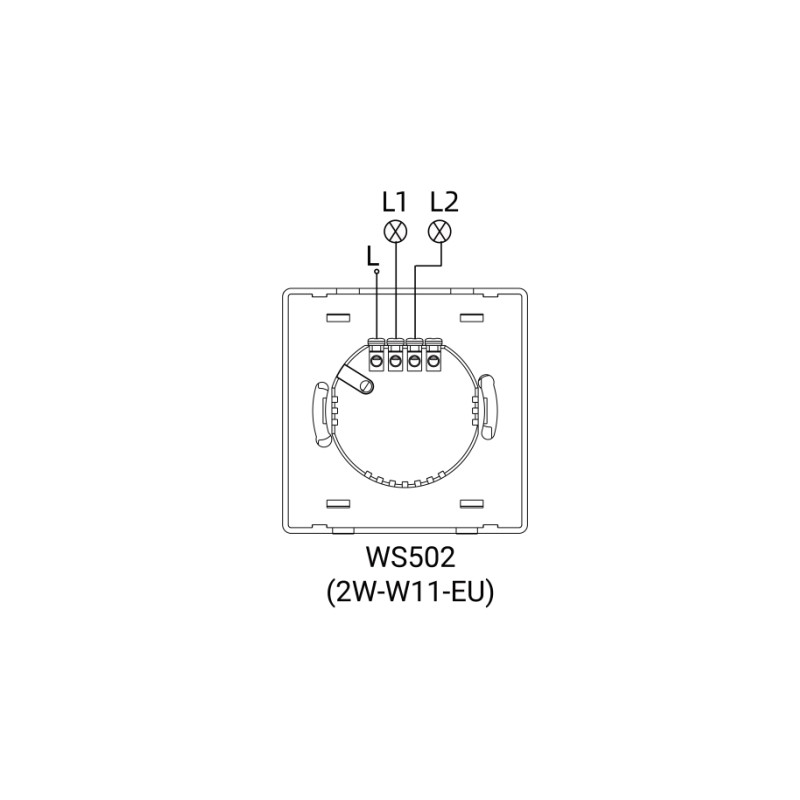

• Circuit Configuration: 2-wire (no neutral wire)
• Measured Parameters: Voltage (VAC), Current (mA), Power Factor (%), Power (W), Energy Consumption (kWh)
• Configuration Method: NFC via mobile app
• Switch Control: Local pressure or remote control
• Advanced Features:
• Time programming, Switch lock, Overcurrent protection, Multicast, LoRa D2D Controller and Agent
• Protection rating: IP20
• Material: Flame-retardant polycarbonate
• Color: White
• Type 86: 86 × 86 × 40 mm
• Operating temperature:
• -20°C to +60°C
• Relative humidity: 0% to 95% (non-condensing)
