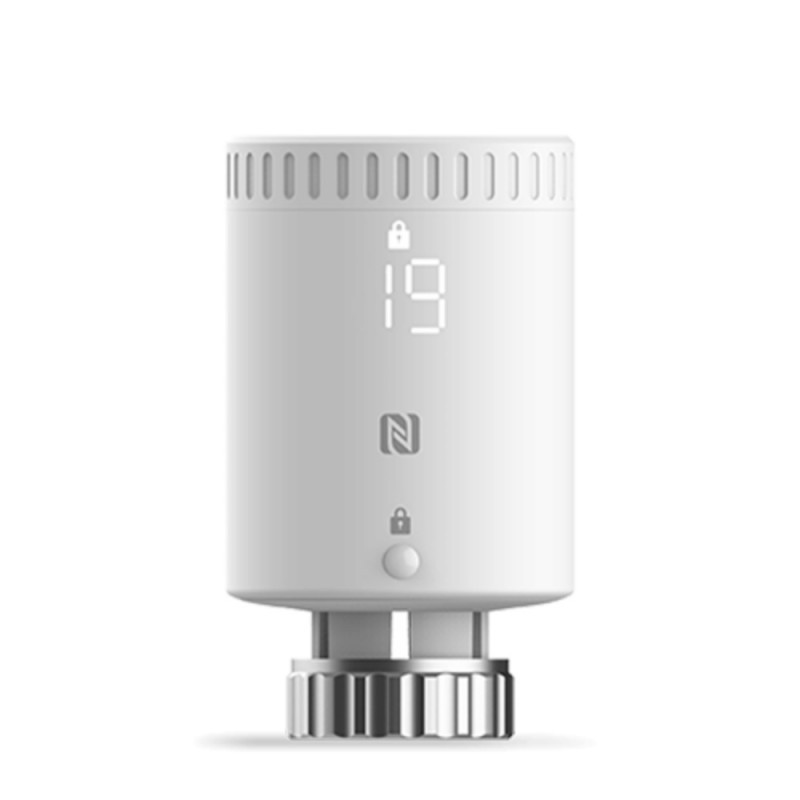

MILESIGHT - LoRaWan WT101 thermostatic control head View larger

MILESIGHT - LoRaWan WT101 thermostatic control head

WT101-868M

Milesight

New product

Control and optimize your heating with the LoRaWAN MILESIGHT WT101 thermostatic head.

More details

This product isn't available anymore.

More info

MILESIGHT - LoRaWan Thermostatic Head WT101-868M

The LoRaWAN MILESIGHT WT101 Smart Thermostatic Head is designed to provide precise, connected management of your radiators. Compatible with the LoRaWAN protocol, it enables you to remotely control and automate the temperature of your spaces, offering comfort and energy savings. Whether for residential or office use, the WT101 guarantees optimized heating control by automatically adjusting the temperature according to your needs.

Easy to install and compatible with most radiator valves, the WT101 thermostatic control head runs on a long-life battery, providing extended autonomy for trouble-free use. In addition to remote management, it features integrated temperature and humidity sensors for optimal heat adjustment, reducing energy waste and ensuring constant thermal comfort.

Thanks to its LoRaWAN connectivity, the WT101 integrates easily into building management systems or smart home environments. It's an ideal choice for those who want a smart, cost-effective heating solution.

Technical characteristics of the LoRaWan - MILESIGHT thermostatic head :

  • Protocol: LoRaWan
  • Frequency: IN865/RU864/EU868
  • Transmitter power: 16 dBm (868 MHz)
  • Sensitivity: -137 dBm
  • Mode: OTAA/ABP Class A
  • Actuator: Stepper motor
  • Default connection: M30 ×1.5 mm
  • Optional adapters: RA, RAV, RAVL, Giacomini, M28 (Comap, Herz, TA)
  • Advanced features: Automatic temperature control, heating programs, child lock, frost protection, open window detection, tamper alarm
  • Sensor type: NTC
  • Measurement range: -20°C to 60°C Accuracy: ± 0.5°C (0°C to 50°C)
  • Resolution: 0.1°C
  • Display: LED screen with white light
  • Buttons: 1 control button, 1 calibration and anti-sabotage button (internal), 1 reset button (internal)
  • Configuration: NFC configuration via mobile app
  • Power supply: 2 replaceable 1.5 V Li-FeS2 AA batteries (total 3000 mAh)
  • Battery life: Approx. 5 years (10-minute intervals, typical 4-month heating season, 25°C)
  • Operating temperature : -20°C to +60°C
  • Storage temperature: -40°C to +70°C (without batteries)
  • Relative humidity: 0% to 95% (non-condensing)
  • Protection rating: IP30
  • Dimensions: Φ 52 × 90 mm
  • Material and color: Stainless steel + ABS, White
