MILESIGHT - Outdoor CO2 sensor IP65 - 4 in 1 LoRaWAN

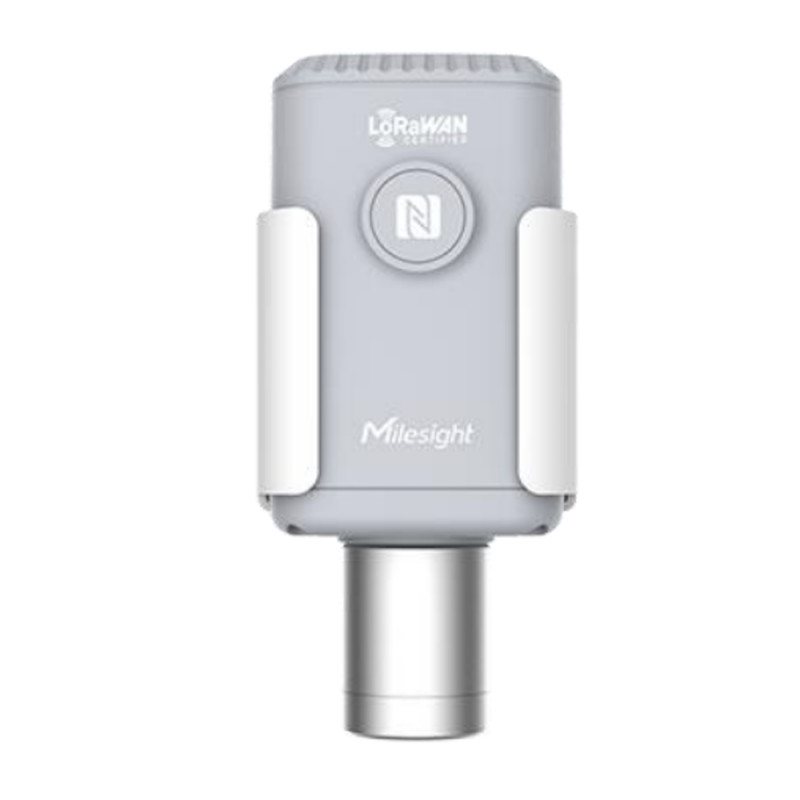

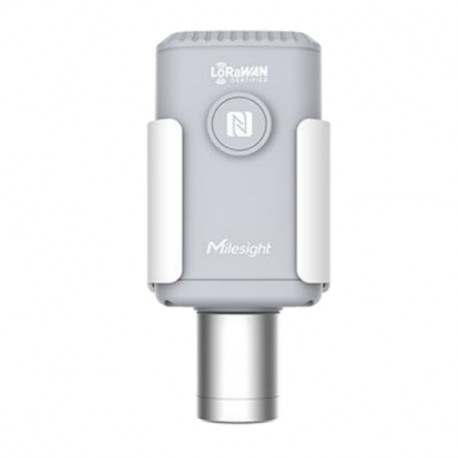

Milesight EM500-CO2-868M: LoRaWan outdoor CO2 sensor

EM500-CO2 is designed to measure CO2, temperature, humidity and barometric pressure in harsh environments and transmit the data using LoRaWAN technology.

Thanks to this low-energy technology, the EM500-CO2 can operate for up to 10 years on a 19,000 mAh battery. Combined with the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

The CO2 sensor is widely used in areas where knowledge of CO2 is important (greenhouses, food storage, forest fire detection, etc.).

EM500-CO2 has a very wide transmission range, is compatible with LoRaWan networks and gateways, and is easy to configure and install.

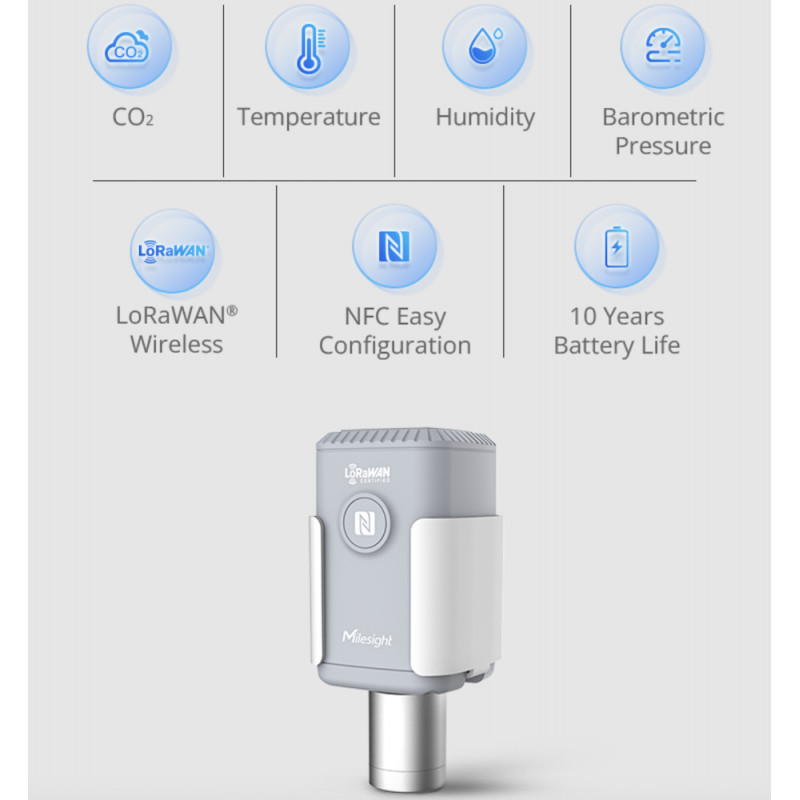

4 IN 1 CO2 sensor functions - Milesight

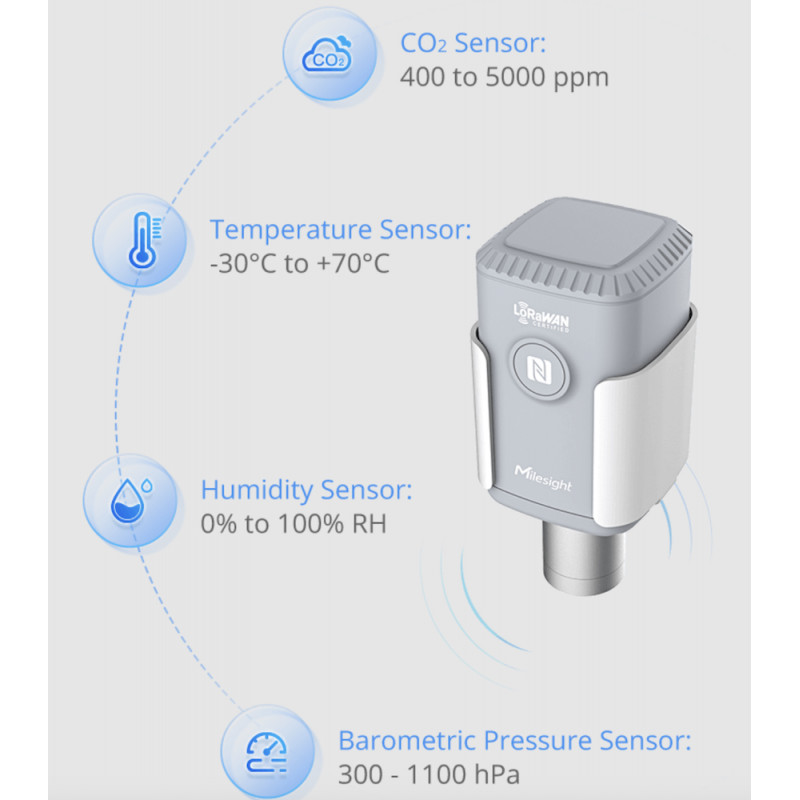

• Real-time monitoring of CO2, temperature, humidity and barometric pressure

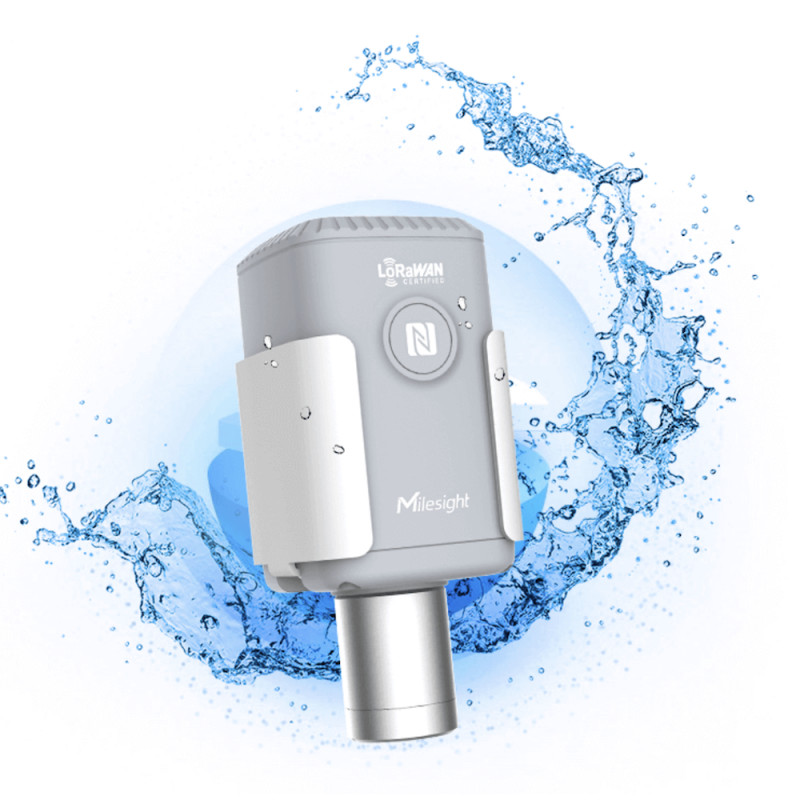

• IP65 waterproofing for outdoor use (harsh environments)
• Long-lasting autonomy of approx. 10 years (replaceable 19,000 mAh battery)
• Simple configuration via NFC
• Convenient flexible installation (wall, post, rail...)
• Data storage and retransmission
• Programmable alert and threshold
• Compatible with LoRaWan gateways and servers

EM500-CO2-868M technical specifications

• Wireless transmission
• LoRaWAN technology
• Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Transmitter power 16 dBm (868) / 20 dBm (915) / 19 dBm (470)
• Sensitivity -137 dBm at 300 bps
• Mode OTAA/ABP Class A
• Sensors Carbon dioxide (CO2)Sensor type NDIR
• Range 400 - 5000 ppm Accuracy ± (30 ppm + 3% of reading) (0°C - 50°C,
• 0 - 85% RH) Resolution 1 ppm
• Temperature Sensor type MEMS
• Range -30°C to + 70°C
• Accuracy 0°C to + 70°C (+/- 0,3°C), -30°C to 0°C (+/- 0.6°C)
• Resolution 0.1°C
• Humidity Sensor type MEMS
• Range 0% to 100% RH
• Accuracy 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) Resolution 0,5% RH
• Barometric pressure Sensor type MEMS
• Range 300 - 1100 hPa (-40°C - 85°C)
• Accuracy ±1 hPa
• Resolution 0.1 hPa
• OperationNFC on/off,
• power button (internal)
• Configuration Mobile application (via NFC) or PC software (via USB Type-C)
• Advanced features Data storage (1,000 pieces), data retransmission,
• threshold alarm
• Physical characteristicsPower supply Battery Li-SOCL2 19,000 mAh (ER34615)
• Battery life * 10 years (10 min interval)
• Operating temperature -30°C to +70°C
• Relative humidity 0% to 100% (non-condensing)
• Ingress protection IP65
• Dimension 147,9 × 71 × 69.5 mm (5.8 × 2.8 × 2.7 inches)
• Installation Pole, wall or DIN rail mounting
• Approvals
• Regulatory Certified CE, FCC, RoHS, LoRaWAN®,
• ISED, ICASA EMC
• EN 55032, EN 55035 EMS
• IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-8 Level 4
• Radio frequency FCC part 15B, FCC part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2
• Safety EN62368-1
