MILESIGHT - Soil moisture sensor IP65 - 3 in 1 - LoRaWAN

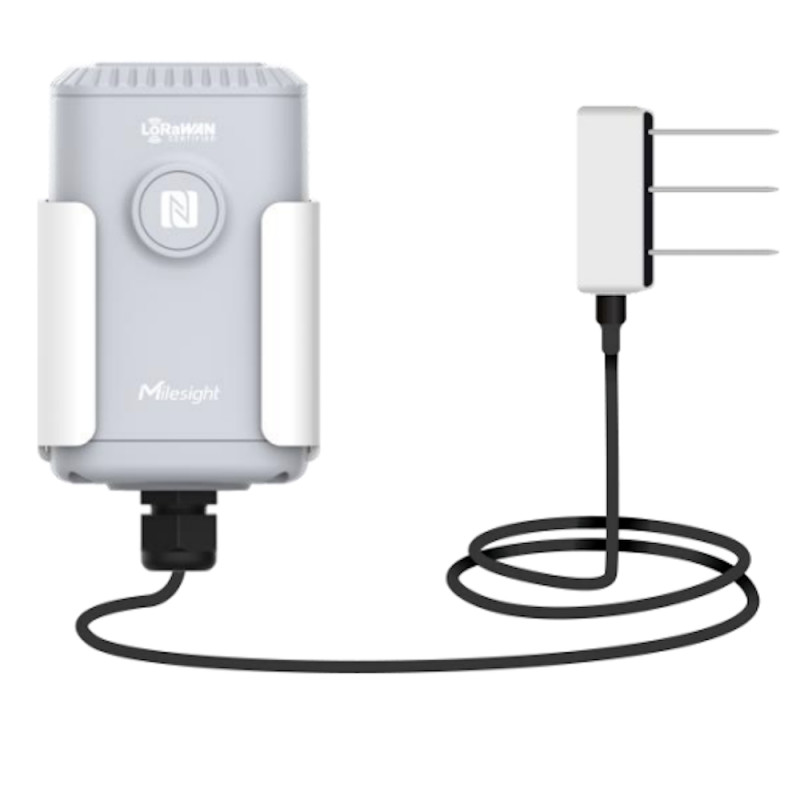

Milesight EM500-SMTC: IP65 3-in-1 LoRaWan soil moisture sensor

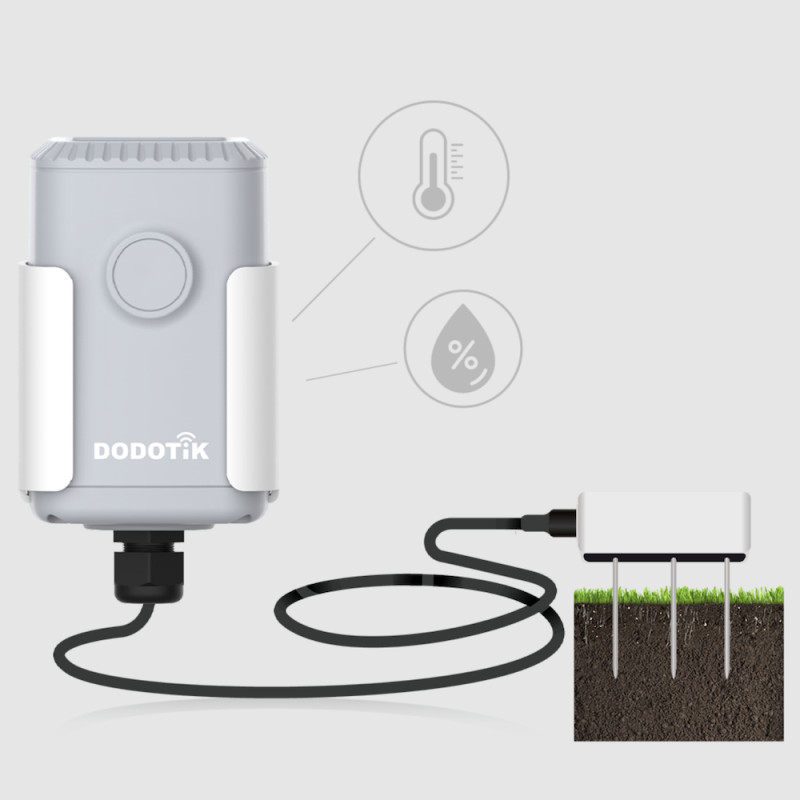

The EM500-SMTC is designed to measure soil moisture, temperature and electrical conductivity in harsh environments, and to transmit data using LoRaWAN technology.

Thanks to this low-energy technology, the EM500-SMTC can operate for up to 10 years on a 19,000 mAh battery.

Combined with a Milesight LoRaWAN gateway and the Milesight IoT Cloud solution, users can remotely manage and view all sensor data.

The EM500-SMTC is widely used in outdoor applications such as smart agriculture, smart horticulture and more.

This device is designed to withstand the harshest environments. Thanks to its shock and vibration resistance, IP67 transceiver and IP68 sensor.

Functions of the LoRaWan Milesight humidity sensor

• Transmits data via LoRaWAN with a range of up to 10 km.
• Measures soil moisture, temperature and conductivity with high precision.
• Operates for up to 10 years thanks to a 19,000 mAh battery.
• Resistant to harsh environments (IP67/IP68) and corrosion.
• Stores up to 1,000 data sets locally with retransmission.
• Simple configuration via NFC
• remote management via Milesight IoT Cloud.

Technical specifications of the Milesight EM500-SMTC-868M sensor

• Technology: LoRaWAN
• Frequencies: EU868
• Transmit power: 16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz);
• Sensitivity: -137 dBm @300bps
• Mode: OTAA / ABP, Class A
• Humidity measurement: range 0% RH to 100% RH, accuracy ±2% (0-50%) / ±3% (50-100%), resolution 0.01%
• Temperature measurement: range -40°C to 80°C, accuracy ±0.5°C, resolution 0.1°C
• Conductivity measurement: range 0 to 20000 µs/cm, accuracy ±3% (0-10000) / ±5% (10000-20000), resolution 10 µs/cm (0-10000), 50 µs/cm (10000-20000)
• Power on/off: via NFC or internal button
• Configuration: via mobile app (NFC) or PC software (USB Type-C)
• Advanced features :
• data storage, retransmission, retrieval, threshold alarm, temperature variation alarm, Milesight D2D controller
• Cable length: 2 m

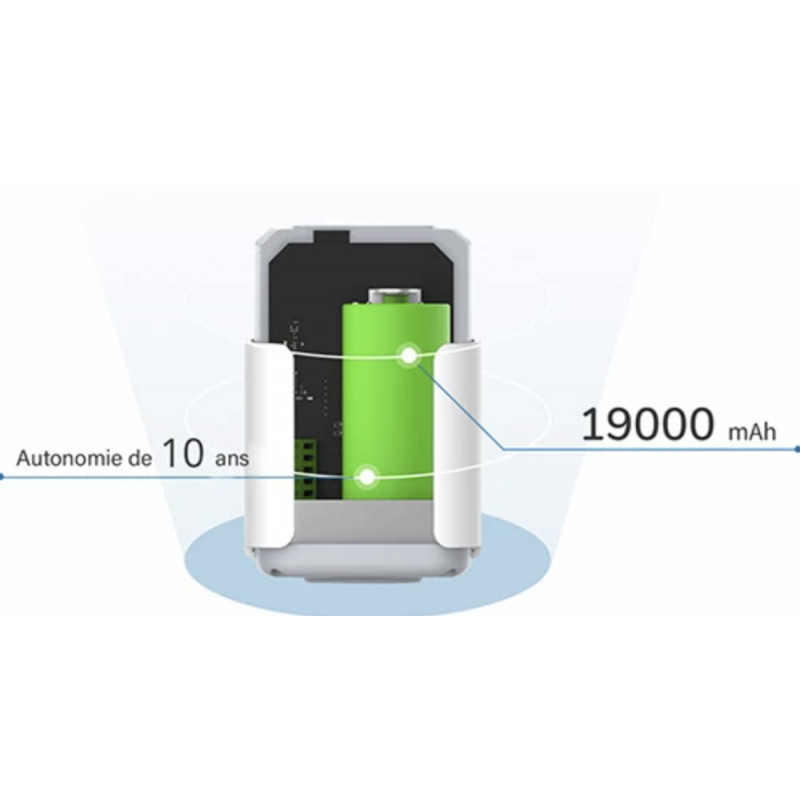

• Power supply: 1 ER34615 Li-SOCl₂ 19000 mAh battery
• Autonomy: up to 10 years (10 min interval, at 25°C)
• Operating temperature:
• -30 °C to +70 °C
• Relative humidity: 0% to 100% (non-condensing)

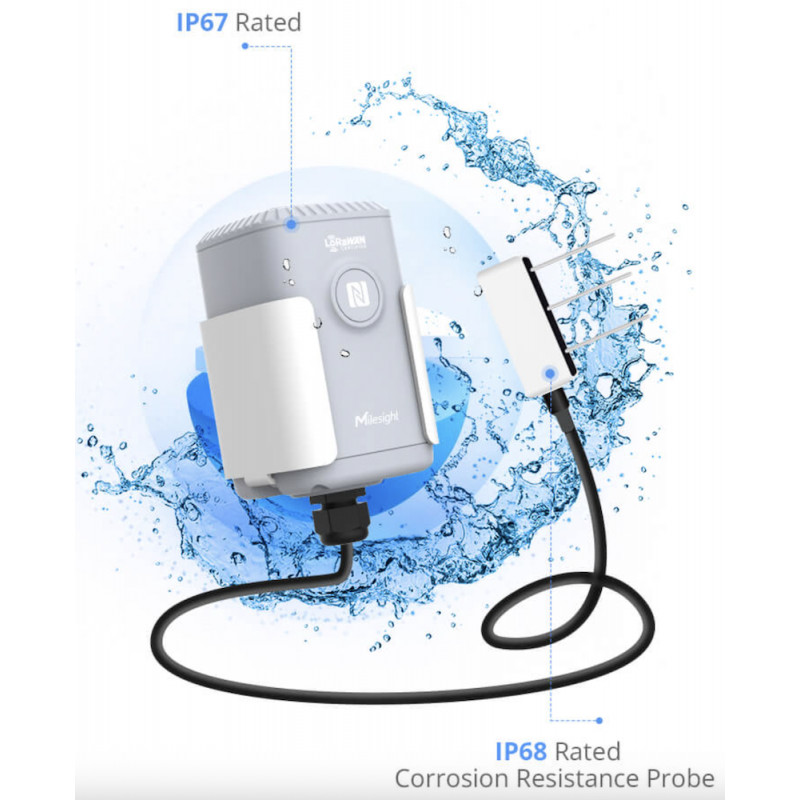

• Protection rating: IP67 for transceiver, IP68 for soil sensor
• Transmitter dimensions: 105.4 × 71 × 69.5 mm
• Soil sensor dimensions: 88 × 68 × 26 mm
• Probe length: 50 mm
• Installation: on pole, wall or DIN rail
• Regulatory certifications: CE, FCC, ISED, ICASA
• Environmental compliance: RoHS.
