MILESIGHT - QAI 2 in 1 LoRaWAN temperature & humidity sensor + display

The AM102 sensor from Milesight is a compact indoor environment monitoring sensor for measuring temperature and humidity.

This data is transmitted via the LoRaWAN protocol, making it possible to quantify the indoor environment and comfort.

The AM102 is widely used in offices, stores, classrooms, hospitals, etc.

Thanks to its low-power technology, the AM102 can operate for over 7 years on 2 replaceable batteries.

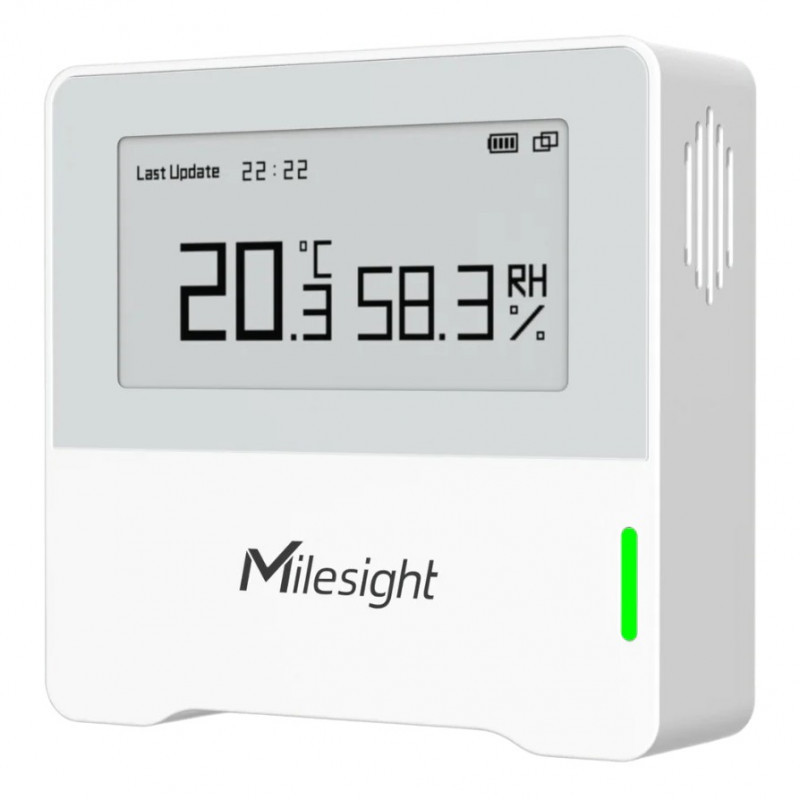

It features an E-Ink display showing measurements in real time.

Milesight AM102 sensor features

• 7 years of operation without replacing batteries
• NFC integrated for easy configuration
• Compatible with standard LoRaWAN® gateways.

Technical specifications of the Milesight AM102 sensor

• Technology: LoRaWAN
• Frequency: EU868
• Tx power: 16 dBm (868 MHz)
• Sensitivity: -137dBm @300bps
• Mode: OTAA/ABP Class A
• Temperature Operating principle :
• CMOSens® digital technology (MEMS)
• Range: -20°C ~ 60°C
• Accuracy: 1 ± 0.2°C
• Resolution: 0.1°C
• Humidity Operating principle CMOSens® digital technology (MEMS)
• Range: 0% RH~ 100% RH
• Accuracy: ± 2% RH
• Resolution: 0.5% RH
• Button: 1 × power button
• LED: 1 × status indicator
• Configuration: Mobile application via NFC
• Power supply: 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable batteries
• Battery life (10 min interval, 25°C): 7 years
• Operating temperature: -20°C ~ 60°C
• Relative humidity: 0% ~ 95% (non-condensing)
• Ingress protection: IP30
• Dimensions: 68 × 65 × 20.5 mm
