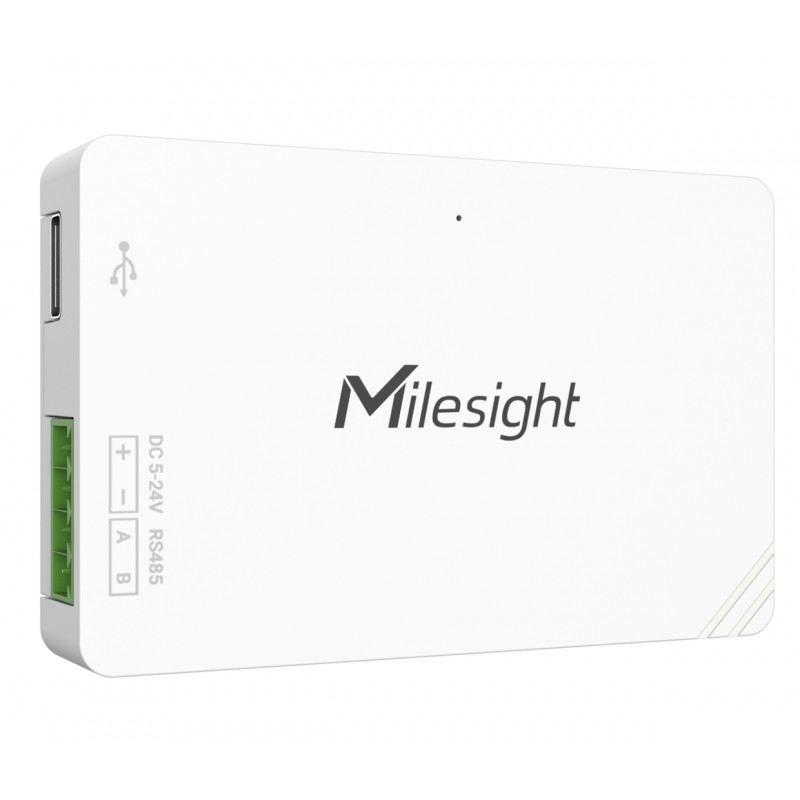

MILESIGHT - UC100 Modbus to LoRaWAN converter

The UC100 loT Controller module from Milesight connects your Modbus RTU equipment to your LoRaWAN network.

It can read up to 32 Modbus RTU registers and supports transparent Modbus transmission, serving as a Modbus RS485 to LoRaWAN converter.®.

Designed for remote control and data acquisition, it supports multiple trigger conditions and actions, and can operate autonomously even when the network is unavailable.

Technical specifications

• Radio features
• LoRaWAN EU868, Milesight D2D
• Internal antenna
• Tx Power 16dBm
• Sensitivity: -137dBm @300bps
• OTAA/ABP Class C mode
• Interface:
• 1x RS485
• Connecter 3.5 mm

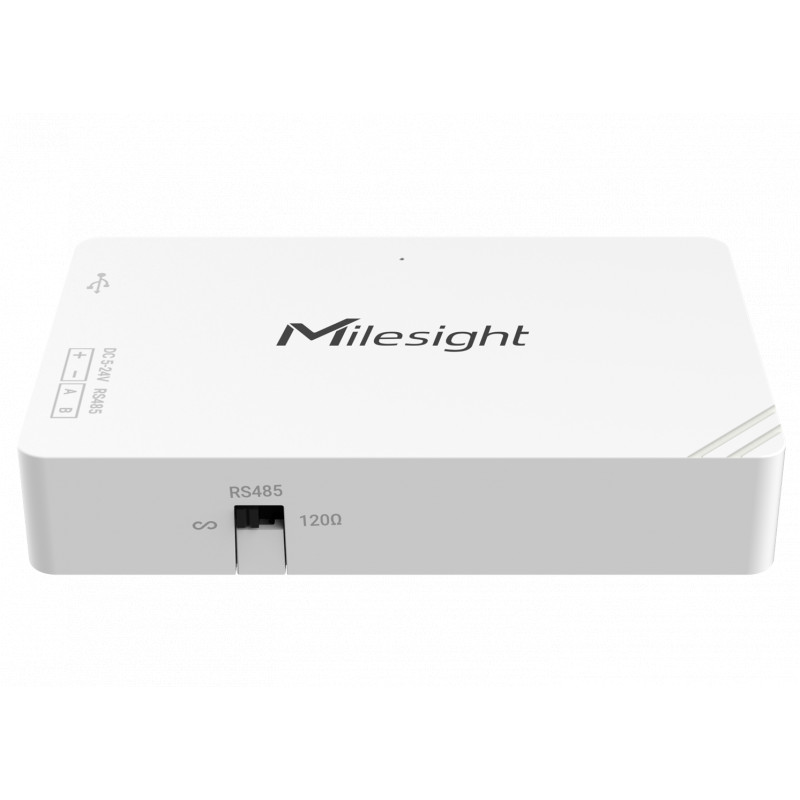

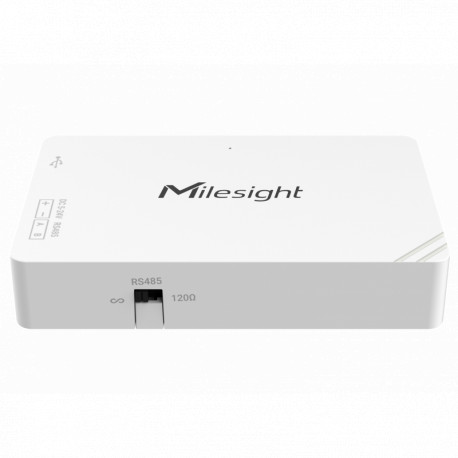

• Resistance 1x 120Ω switchable
• Baud
• Rate 1200-11520 bps
• Protocol: Modbus RTU, Passthrough
• Others:
• Configuration port:
• USB Type-C
• 1x Reset button
• 1x Led
• Dimensions: 70 x 45 x 13 mm
• IP30 protection
• Power supply: 5-24 VCD or 5VCD via USB Type-C port
