SONOFF - WIFI connected switch micromodule - 1 channel - 16A

Make your lighting connected even without a neutral

Have you ever encountered these similar situations when considering an easier way to set up and control your smart home? Smart lights are offline when the switch is off? No neutral wire in mounting box?

Now S-MATE can help you solve this problem.

MINI R3 is a small module with powerful functions, the maximum charging current can reach 16A, which makes it a powerful solution to make your devices smarter.

MINI R3 is compatible with Alexa, Google Assistant, Siri and Alice. Just say your needs, the smart device can do what you want to do.

With sync status on the eWeLink app, your worry about leaving devices on at home is no longer a problem.

Just take out your phone and press it. S-MATE is battery powered, so it does not require a neutral wire in the mounting box. S-MATE is suitable for almost all types of switches, change your existing switch into a smart switch.

S-MATE can connect the ordinary 1/2/3 button wall switch which acts as a remote control.

After pairing with MINI R3, MINI R3 can be locally controlled by S-MATE through "eWeLink-Remote" signal, and trigger other smart devices into the smart scene. "eWeLink Remote" working distance is up to 50m in open space.

MINI R3 and S-MATE have been tested for safety and comply with the requirements of international regulations, as TÜV certification and FCC&CE certification guarantee high confidence, quality and safety.

*Note: Please update eWeLink APP to version 4.18 to use it and the latest firmware version.

Attention, MINI R3 is sold separately (so you must also acquire S-MATE if necessary).

FEATURES

• Max. 16A Load Current: The maximum load current of MINI R3 can be up to 16A that making it a powerful solution to smarten your appliances.
• Open Device REST API: Connect and control the MINI R3 with your existing home automation system like Home Assistant via LAN.
• ”eWeLink-Remote” Control: MINI R3 is a smart switch with the gateway function of “eWeLink-Remote“. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene switch R5(coming soon).
• No Neutral Wire Required Solution: If your switch box does not have a neutral wire, a collocation of MINI R3 and S-MATE can be installed and used.
• Safe And Reliable: TÜV, CE, and FCC certifications ensure a safer and more reliable product.

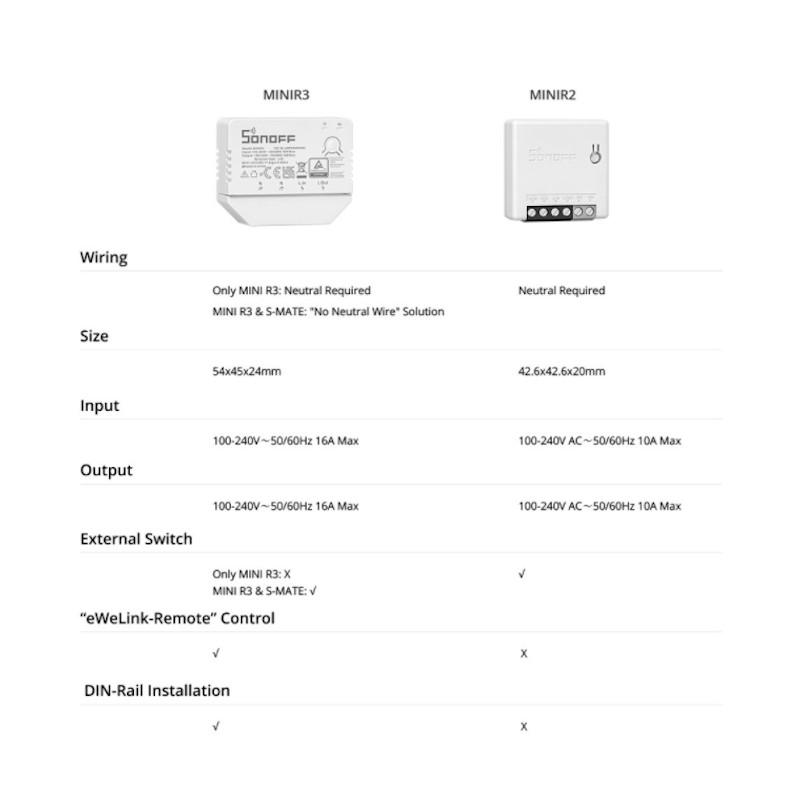

SPECIFICATION

• Output: 100-240V~50/60Hz 16A Max
• Max. load: 3500W
• "eWeLink Remote" receiving distance: Up to 50M in Open Space
• Operating systems: Android & iOS
• Wi-Fi: IEEE 802.11/b/g/n 2.4GHz
• Shell material: PC V0
• Dimension: 54x45x24mm
