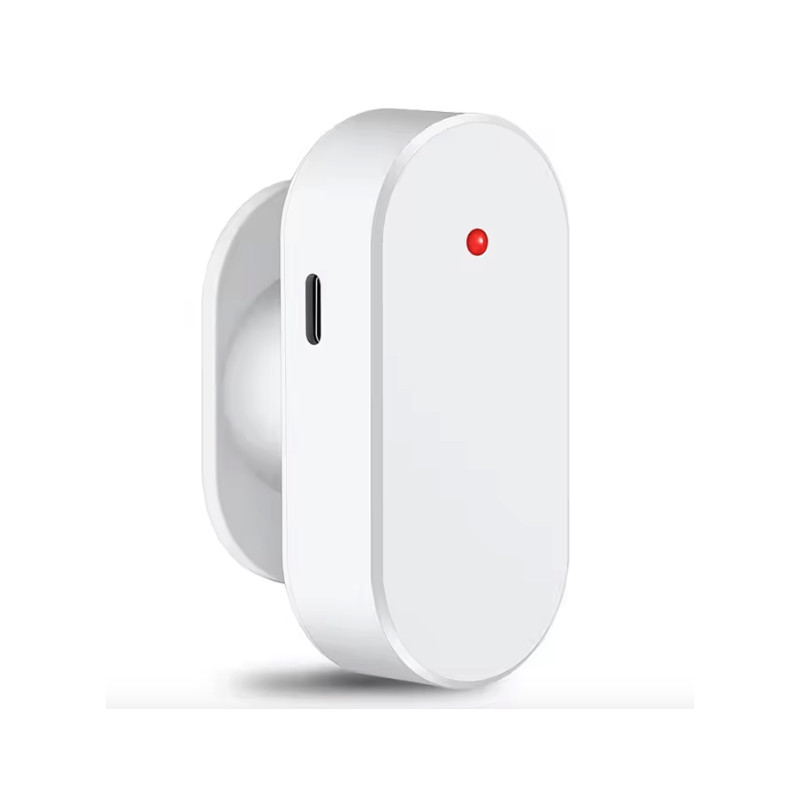

HAOZEE - WIFI human presence detector Tuya Smart Life

Presentation

The HZ-PS-01-WIFI is a 24 GHz millimetric radar human presence sensor. It detects both macroscopic and micro-movements (such as breathing or a slight sway), offering greater accuracy than conventional PIR sensors. Connected via Wi-Fi, it integrates directly into Smart Life, Tuya or LIDL Home applications without a gateway.

Use cases

• Automatic switching on/off of lighting according to actual presence, even when motionless
• Home security and intruder detection without false alarms
• Applications in hotels, offices, industry and intelligent buildings
• Energy savings through reliable detection even without visible movement

Main functions

• Static and moving presence detection
• High-precision 24 GHz radar
• Integrated light sensitivity (0-3000 Lux)
• Integration into home automation scenarios via Wi-Fi

Technical specifications

• Model: HZ-PS-01-WIFI
• Connectivity: Wi-Fi (via Smart Life / Tuya / LIDL Home)
• Radar technology: 24 GHz
• Supply voltage: 5 V DC / 1 A
• Operating current: ≤ 70 mA
• Operating temperature :
• -10 °C to +55 °C
• Light sensitivity: 0 - 3000 Lux
• Installation: wall-mounted or ceiling-mounted
