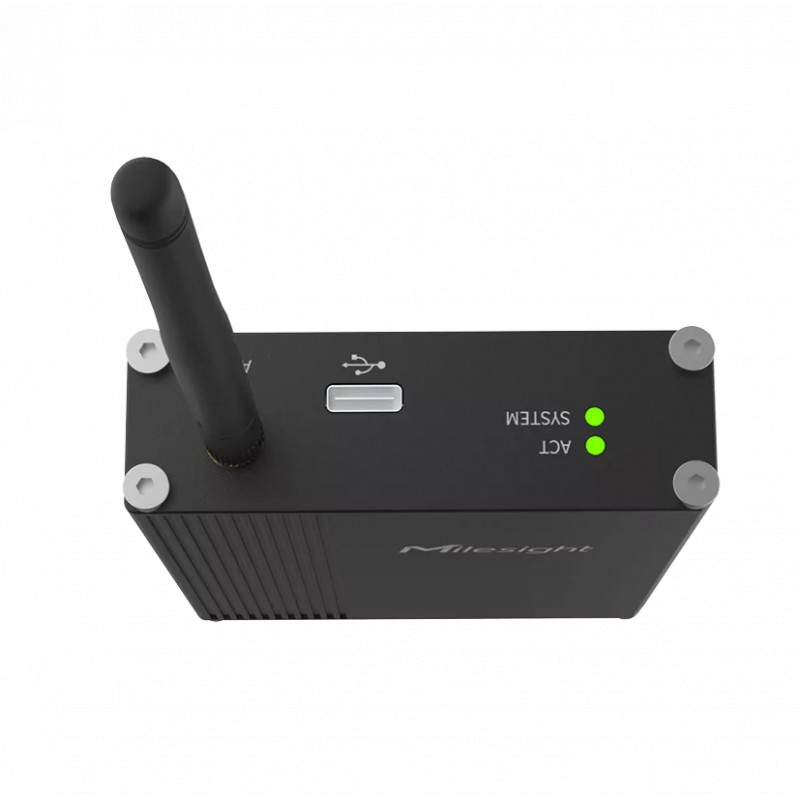

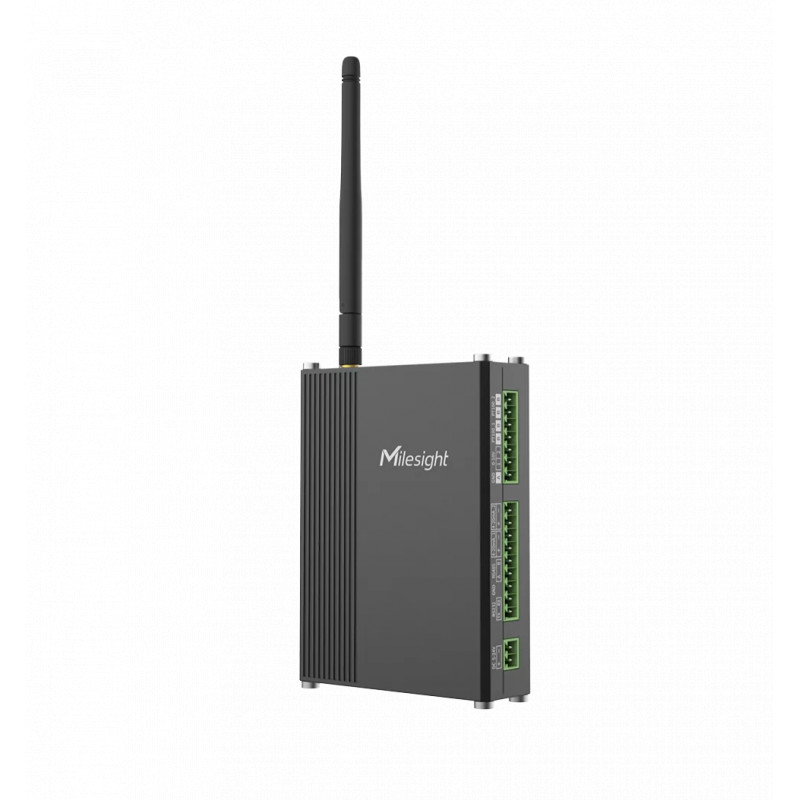

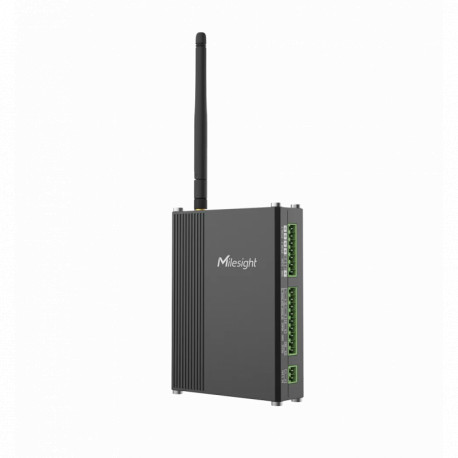

MILESIGHT - UC300 LoRaWAN and 4G IOT controller

Milesight's UC300 IoT Contreller module is used for remote control and data acquisition from various devices.

It features several I/O interfaces, including analog inputs, digital inputs, relay outputs, 2 serial ports (RS232 and RS485), and PT100 inputs for remote data transmission via LoRaWAN® or 3/4G network.

In addition, the UC300 supports multiple trigger conditions and actions that can operate autonomously even when the network has been interrupted.

With its industrial design and IP30 metal housing, UC300 is perfectly suited to building automation.

Technical data

• LoRaWAN radio features
• LoRaWAN EU868, Milesight D2D
• External antenna: 1 x 50ΩSMAConnector(Center PIN: SMA Female)
• Tx Power 16dBm
• Sensitivity: -137dBm @300bps
• OTAA/ABP Class C mode
• Radio features 4G LTE/3G/2GLoRaWAN EU868, Milesight D2D
• External antenna: 1 x 50ΩSMAConnector(Center PIN: SMA Female)
• SIM: 1 Micro SIM-3FF
• TCP/UDP/MQTT/AWS/Milesight IoT Cloud/SMS mode
• Interface:1 x RS485 + 1 x RS232
• 1200-115200 bps
• Analog inputs: 2x 2-20 mA, 2x 0-10 V
• Resolution: 12 bit
• Analog inputs RTD
• 2x PT100 RTD, 3-wire
• Resolution 12 bit
• Reading range -200°C - 800°C

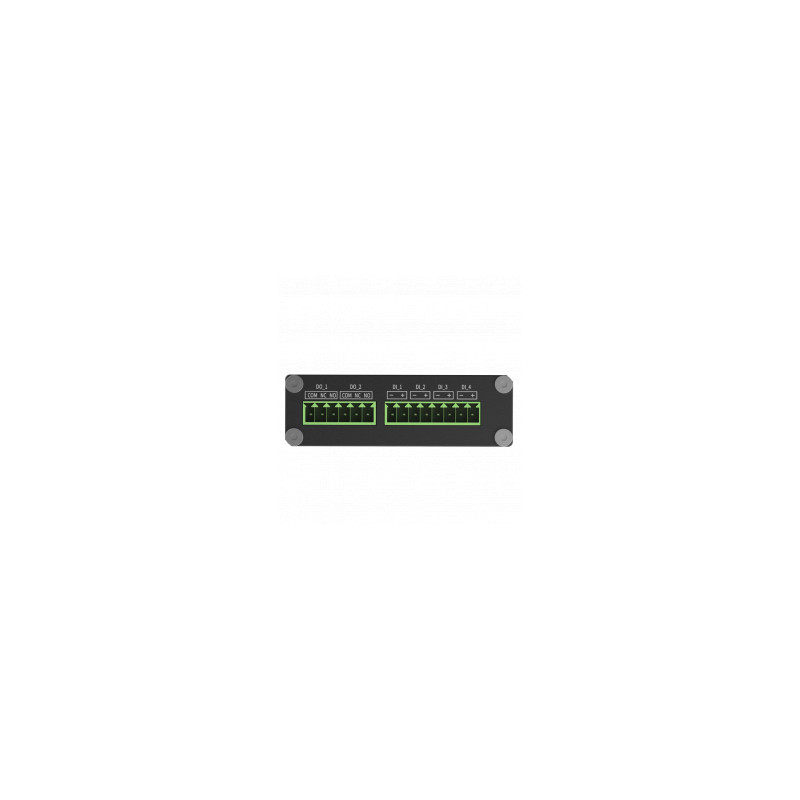

•  IO
• 2x Digital inputs
• 2x Digital outputs
• Others:Configuration port: USB Type-C
• 1x Reset button
• 1x System LED, 1 x Act LED
• Dimensions: 90 x 70 x 22 mm
• IP30 protection
• Power supply: 5-24 VCD
