MClimate - LoRaWAN Air Quality Sensor (CO2. Humidity, Temperature)

MCL-CO2

MClimate

New product

MClimate - LoRaWAN Air Quality Sensor (CO2. Humidity, Temperature)

More details

More info

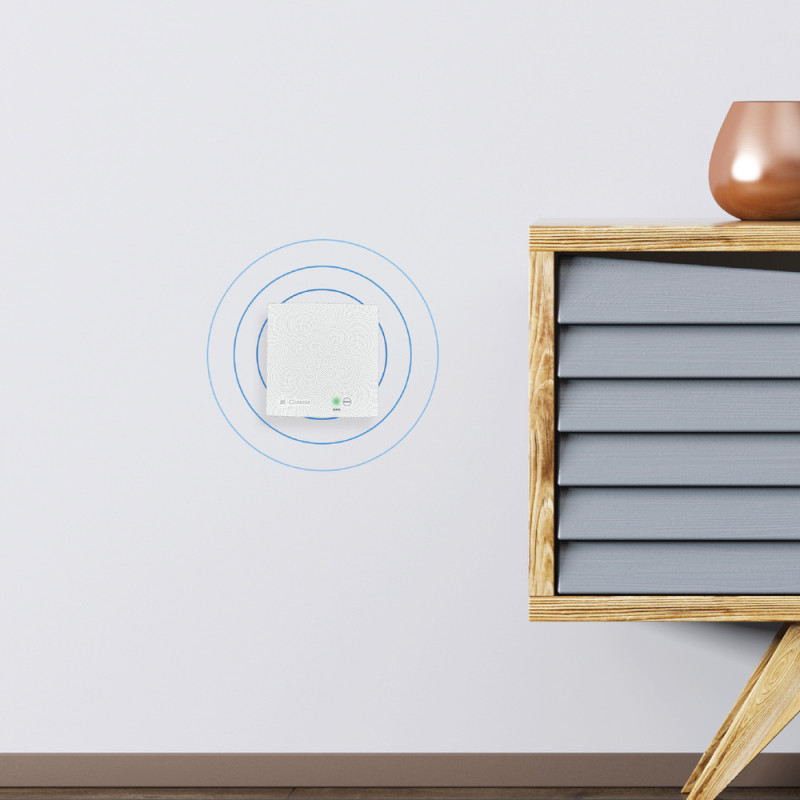

MClimate  CO2  Sensor  and  Notifier  is  a  device that  uses  NDIR  technology  to  measure  the  actual CO2  and  has  built-in  temperature  and  humidity sensors. The device also has acoustic and visual notification  abilities  to  indicate  occupants whether a room should be ventilated.

FEATURES :

  • CO2 Sensor (NDIR)
  • Temperature Sensor
  • Humidity Sensor RGB L
  • ED Acoustic Buzzer
  • 2xAA Power supply
  • Ultra-low power consumption

TECHNICAL SPECIFICATIONS :

  • Power Supply :
    • Battery type: 2xAA
    • Operating voltage: 3VDC
    • Expected battery life: Up to 10 years (depending on configuration and environment)
    • Recommended batteries: Energizer Lithium Ultimate L91
    • The device does not work with rechargeable batteries
  • Radio technology:
    • LoRaWAN 1.0.3, Class A device, EU868
    • Encryption: End-to-End LoRaWAN Encryption (AES-CTR)
    • Activation: OTAA
    • Link budget: 130dB
    • RF transmit power: 14dB
  • Weight and dimensions: 68gr, 80x80x19mm
  • Operating conditions :
    • Temperature: 0 - + 50 ° C
    • Humidity: 0-80% RH
  • Precision :
    • Temperature: 0.1 ° C to ± 0.2 ° C
    • Humidity: 0.1% RH to 2% RH
    • CO2:
      • Accuracy: ± 3% or 30 ppm at 25 ° C
      • Range: 0-5000ppm
      • Technology: NDIR
      • Peak consumption: 15mA
