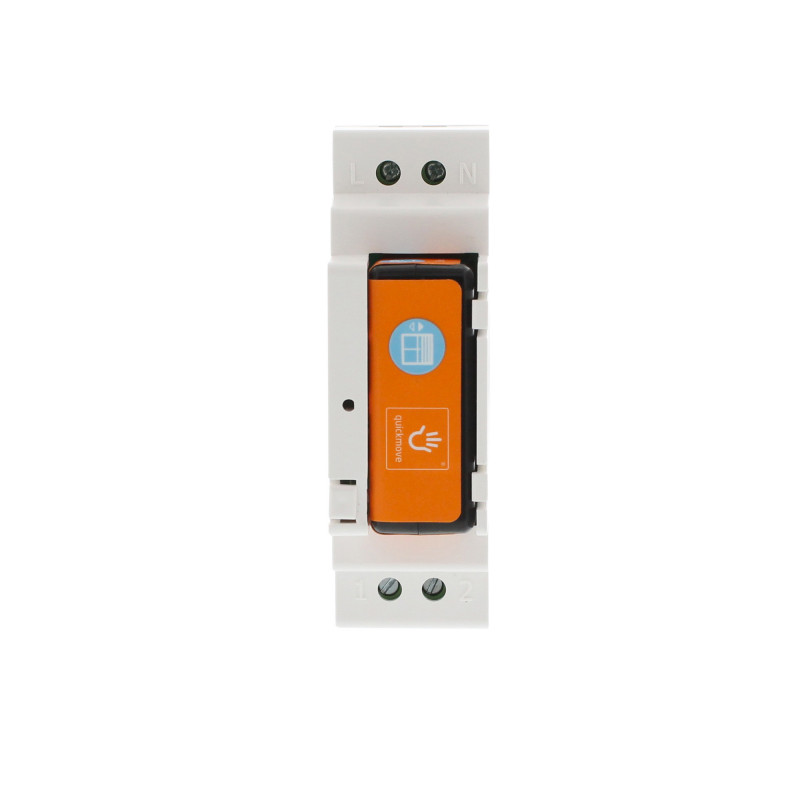

NODON - DIN Rail Box for Relay Switches (5 units)

DRB-1-1-00

NODON

3700313924167

New product

The DIN Rail Box allows installers and electricians to directly connect the relay switches to the electrical panel. Pack of 5 units.

More details

More info

A DIN Rail Box to simplify the installation of relay switches

The DIN Rail Box allows installers and electricians to directly connect the relay switches to the electrical panel. Ideal for new buildings and renovation, this DIN Rail Box permits to save time before the installation and on site. The DIN Rail Box is compatible with the Relay Switches 2 Channels, 1 Channel Dry Contact and the Roller Shutter Module. It can be installed on DIN Rail Type Ω EN 50022.

Compatible DIN Rail Type Ω EN 50022

The DIN Rail Box is designed to be installed on DIN Rail Type Ω EN 50022, it adapts itself to almost all types of electrical panels for housing.

Quick connection of the relay switch

The installation of the relay switch inside the DIN Rail Box is quick thanks to the inside pins and to the outside slots.

Simple junction to the electrical panel

The DIN Rail Box is easy to cable to the electrical panel thanks to the terminals Neutral, Phase, Input and Output

Remote commissioning

Using latest EnOcean® specifications, NodOn® Relay Switch keeps its specifications (Quickmove) and can be fully commissioned without any physical intervention from the installer

Note : The DIN Rail box is not delivered single. The content of the package is 5 units.

TECHNICAL SPECIFICATIONS :

  • Compatible Relay Switches: SIN-2-2-XX, SIN-2-1-XX, SIN-2-RS-XX
  • Compatible DIN Rail: Type Ω EN 50022
  • Maximum intensity: 10A
  • Protection factor: IP20
  • Dimension: 87x27x58 mm

CERTIFICATIONS AND STANDARDS - EUROPE :

  • Directive Low Voltage LVD 2014/35/EU
  • Directive RoHs 2011/65/UE
  • Directive DEEE 2012/19/UE
  • EN 60669
  • EN 60669-2-5
